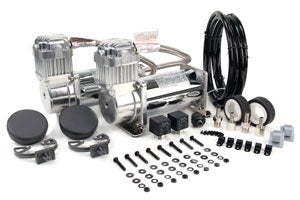

The dual 400C compressor setup builds up to 150 PSI of pressure using only 51 amps of power. This means that your system will run strong and last twice as long as systems using a single compressor. With this kind of low amp draw. Your vehicle will make more horsepower when your compressors are running. You'll never have dim headlights or an engine that suffers from performance-robbing high amp draw again.
23400 SPECIFICATIONS:
- Dual 400C Chrome Compressor
- (33% Duty Cycle @ 100 PSI, )
- Dual 12-Volt, 40-amp Relays
- 110 PSI On . 145 PSI Off Pressure Switch
- Maximum Total Amp Draw: 51 Amps (Amp draw of Two 400C's)
- Maximum Total CFM @ 0 PSI: 4.55 CFM
400 SERIES STANDARD FEATURES:
- Oil-less Design
- High Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dust Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Inline Check Valve
- Remote Mountable Intake Filter Assembly
Dual 400C Tank Fill Rates
| 5 Gallon Air Tank |
Fill Rate |
| 0 To 145 PSI |
2 Min. 20 Seconds |
| 110 To 145 PSI |
45 Seconds | - Duty Cycle: 33%
- Note: Powered by Viair
- Availability: Usually Ships within 24 hours
|
