Mile Marker H12000 Hydraulic Winch Features
- Freespooling
- Mechanical Lock
- Sealed against the elements
- Can use underwater
- Corrosion resistant
- Stainless Steel tie bars and Fasteners.
- Reversible mounting can be
mounted on 3 different sides.
- Ductile iron strength.
- 2 Speed
The Mile Marker H Series Hydraulic Winch can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system. This system is independant from its solenoid control pack to give more freedom in mounting options and vehicle applications.
Don't need the flexibility of a detachable mount? Consider the HI Series 12000 pound Hydraulic Winch, designed for permanent mount winch installations.
Want to review the Mile Marker Hydraulic Winch line? Click here for more information...
H12000 (70-52000C) Specifications
| Rated Line Pull (single line) | 12,000 lbs.@1500 PSI (5,454 kgs.) |
| Gear Train | Planetary |
| Gear Ratio | 6:1 (low gear)/ 1:1 (high gear) |
| Motor | 18.7 C.I. Hydraulic |
| Cable | 3/8"x 100' (14,400 nominal) |
| Drum Size: Diameter/Length | 2.5" (6.4cm)/9" (23 cm) |
| Total Shipping Weight | 98 lbs. |
| Bolt Pattern | 10" x 4.5" (4 bolts, 3/8″) |
H12000 (70-52000C) Performance Specifications
| 3.5 GPM @ 1500 PSI | |
| Layer of Cable | 1 | 2 | 3 | 4 |
| Line Speed-Low Gear (FPM) | 5.65 | 6.43 | 7.41 | 8.58 |
| Rated Pull (lbs.) | 12,000 | 9,400 | 8,200 | 7,000 |
| Line Speed-High Gear (FPM) | 31 | 36 | 42 | 48 |
| Rated Pull (lbs.) | 2,000 | 1,550 | 1,350 | 1,150 |

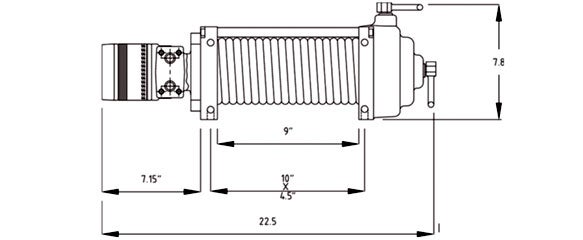

H12000 (70-52000C) Technical Dimensions
Winch Comparison Video
Watch this 17 minute educational video to: learn the differences between an electric and hydraulic winch; the differences between the H and HI Series Hydraulic Winch; and see a test comparison of several manufacturer's winches.
Click Here.. to see the video.
- Availability: In Stock
- Capacity: 12,000 lbs.
- Winch Type: Hydraulic
- Note: The installation of one of the H Series Models (H9000, H10500, H12000) require a 34 Series valve adapter kit. To review the application chart, and to purchase, Click Here..
|
