Mile Marker HI12000 Hydraulic Winch Features
- Freespooling
- Power in/out
- Mechanical Lock
- Sealed against the elements
- Can be used underwater
- Corrosion resistant
- Stainless Steel tie bars and fasteners
- Reversible mounting
- Ductile iron strength
- 2 Speed
The Mile Marker HI Series Hydraulic Winch is designed for permananent mounting in the front or rear of the vehicle. The solenoid control valve is integrated into the winch body, and therefore always remains in the same location as the winch itself.
Do you need the flexibility of a detachable mount? Consider the H Series 12000 pound Hydraulic Winch, designed for permanent OR detachable recovery systems.
Want to review the Mile Marker Hydraulic Winch line? Click here for more information...
HI12000 (75-52000C) Specifications
| Rated Line Pull (single line) |
12,000 lbs.@1500 PSI (5,454 kgs.) |
| Gear Train |
Planetary |
| Gear Ratio |
6:1 (low gear)/ 1:1 (high gear) |
| Motor |
18.7 C.I. Hydraulic |
| Directional Control |
12 volt Solenoid 3 way (24 volt available) |
| Valve |
Integrated (maximum rated flow 7 gpm) draws 2 amps |
| Control Switch |
Remote switch, 12′ lead |
| Hoses |
Two hoses (5′ and 7′) steel braid high pressure, 3,000 PSI rating. Uses sizes 6 JIC swivel female on both ends. |
| Cable |
3/8″ x 100′ (14,400 nominal) |
| Drum Size: Diameter/Length |
2.5″ (6.4cm)/9″ (23 cm) |
| Total Shipping Weight |
110 lbs. |
HI12000 (75-52000C) Performance Specifications
| 3.5 GPM @ 1500 PSI |
|
| Layer of Cable |
1 |
2 |
3 |
4 |
| Line Speed-Low Gear (FPM) |
5.65 |
6.43 |
7.41 |
8.58 |
| Rated Pull (lbs.) |
12,000 |
9,400 |
8,200 |
7,000 |
| Line Speed-High Gear (FPM) |
31 |
36 |
42 |
48 |
| Rated Pull (lbs.) |
2,000 |
1,550 |
1,350 |
1,150 |

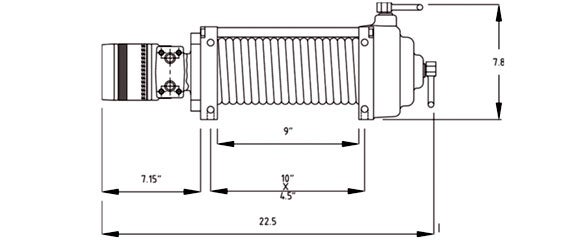

HI12000 (75-52000C) Technical Dimensions
Winch Comparison Video
Watch this 17 minute educational video to: learn the differences between an electric and hydraulic winch; the differences between the H and HI Series Hydraulic Winch; and see a test comparison of several manufacturer's winches.
Click Here.. to see the video.
- Availability: In Stock
- Capacity: 12,000 lbs.
- Winch Type: Hydraulic
- Note: The installation of one of the HI Series Models (HI9000, HI10500, HI12000) require a vehicle specific 35 Series vehicle adapter kit. To review the application chart, and to purchase, Click Here..
|
