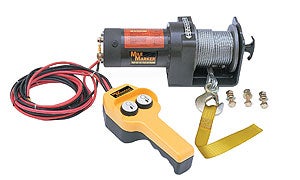

Mile Marker PE2000 Electric Winch

The Mile marker ATV and Utility Vehicle winch line combines the powerful recovery strength of their full size brothers in a rugged, compact size.

These mini-monsters combine all metal construction and planetary gear systems for unmatched reliability and line speed in an ATV recovery system.

These winches are all about getting down to work, and getting you through your path.

PE2000 (76-50100) Specifications

Rated Line Pull (single line)	2,000 lbs.(907 kgs.)
Gear Reduction Ratio	153:1
Motor (Permanent magnet)	1.5 hp (1.0 kw), 12 volt DC
Drum Size: Diameter/Length	2.56" (65.02 mm) x 2.86" (72.64 mm)
Cable supplied (Min break force 4,200 lbs.)	5/32" (4 mm) x 50' (15.2m) aircraft cable with replaceable hook
Overall Dimensions (LxWxH)	12.21" x 4.13" x 4.35" (310.13 mm x 104.90 mm x 110.49 mm)
Total Shipping Weight	15 lbs. (7 kg.)
Mounting Bolt Pattern	T-Shaped 3" (76.2 mm) x 1.9" (48.3 mm)

PE2000 (76-50100) Performance Specifications

Performance of 1st Layer
Line Pull		Line Speed (approx.)		Motor Current
Lbs.	Kgs.	FPM	MPM	12v Amp
0	0	16.40	5.00	15
500	227	13.10	4.00	45
1000	454	9.80	3.00	73
1500	680	6.20	1.90	114
2000	907	4.90	1.50	140

Line pull and cable capacity by layer
Layer	Lbs.	Kgs.	Ft.	Meters
1	2000	907	6.00	1.8
2	1636	742	13.00	4.00
3	1385	628	22.00	6.70
4	1200	544	33.00	10.00
5	1059	480	44.00	13.40
6	947	430	50.00	15.00

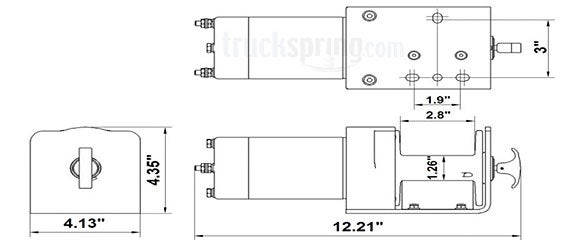

PE2000 (76-50100) Technical Dimensions
