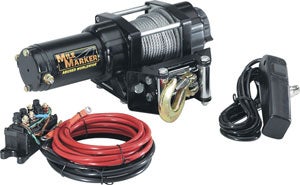

Mile Marker PE2500 Electric Winch Features
- Limited two-year warranty
- Planetary gear system for fast line speed
- Free-spooling
- Power IN and power OUT
- 0.9 hp (0.7 kw) heavy duty electric
permanent magnetic motor
- Low electric current
The Mile marker ATV and Utility Vehicle winch line combines the powerful recovery strength of their full size brothers in a rugged, compact size.
These mini-monsters combine all metal construction and planetary gear systems for unmatched reliability and line speed in an ATV recovery system.
These winches are all about getting down to work, and getting you through your path.
PE2500 (76-50105) Specifications
| Rated Line Pull (single line) | 2,500 lbs.(1134 kgs.) |
| Gear Reduction Ratio | 153:1 |
| Motor | Permanent magnet 0.9 hp (0.7 kw), 12 volt |
| Drum Size | Diameter:2″ (50 mm) x Length 2.95″ (75 mm) |
| Cable supplied (Min break force 4,200 lbs.) | 3/16″ (4.76 mm) x 50′ (15.2m) galvanized aircraft cable with replaceable hook |
| Overall Dimensions (LxWxH) | 13.4″ x 5″ x 5″ (330 mm x 127 mm x 127 mm) |
| Total Shipping Weight | 27 lbs. (12 kg.) |
| Mounting Bolt Pattern | 3″ x 4.87″ (76.2 mm x 123.7 mm)
|
PE2500 (76-50105) Performance Specifications
| Line pull and cable capacity by layer |
| Layer | Lbs. | Kgs. |
| 1 | 2500 | 1134 |
| 2 | 2200 | 998 |
| 3 | 1930 | 875 |
| 4 | 1700 | 771 |

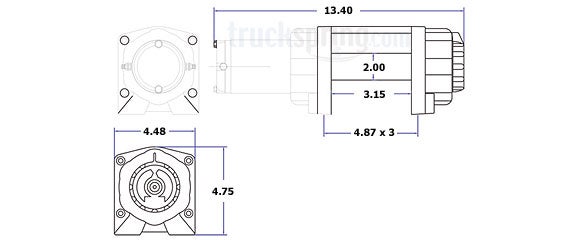

PE2500 (76-50105) Technical Dimensions
Winch Comparison Video
Watch this 17 minute educational video to: learn the differences between an electric and hydraulic winch; the differences between the H and HI Series Hydraulic Winch; and see a test comparison of several manufacturer's winches.
Click Here.. to see the video.
- Availability: Backordered
- Capacity: 2,500 lbs.
- Winch Type: Electric
|
