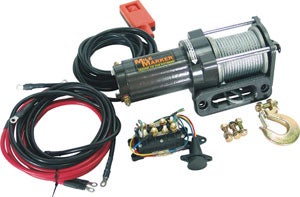

Mile Marker PE3000 Electric Winch

The Mile marker ATV and Utility Vehicle winch line combines the powerful recovery strength of their full size brothers in a rugged, compact size.

These mini-monsters combine all metal construction and planetary gear systems for unmatched reliability and line speed in an ATV recovery system.

These winches are all about getting down to work, and getting you through your path.

PE3000 (76-50110) Specifications

Rated Line Pull (single line)	3,000 lbs.(1362 kgs.)
Gear Reduction Ratio	153:1
Motor	Permanent magnet 1.8 hp (1.3 kw), 12 volt
Drum Size: Diameter/Length	1.5" (38 mm) x 3.2" (82 mm)
Cable supplied (Min break force 4,200 lbs.)	3/16" (4.76 mm) x 50' (15.24m) aircraft cable
Overall Dimensions (LxWxH)	12.6" x 4.5" x 4.3" (330.2 mm x 127 mm x 112.5 mm)
Total Shipping Weight	17 lbs. (8 kg.)
Mounting Bolt Pattern	1.9" x 3.07" (48 mm x 78 mm)
flange	96 mm

PE3000 (76-50110) Performance Specifications

Performance of 1st Layer.
Line Pull		Line Speed (approx.)		Motor Current
Lbs.	Kgs.	FPM	MPM	12v Amp
0	0	1.00	3.00	75
800	363	6.50	2.00	80
1500	680	5.00	1.60	100
2200	1000	4.00	1.20	132
3000	1362	2.60	0.80	140

Line pull and cable capacity by layer
Layer	Lbs.	Kgs.	Ft.	Meters
1	3000	1362	6.50	2.00
2	2450	1112	16.40	5.00
3	2075	942	26.00	8.00
4	1800	817	37.70	11.50
5	1580	720	50.00	15.00

PE3000 (76-50110) Technical Dimensions
