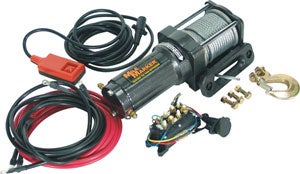

Mile Marker PE3500 Electric Winch

The Mile marker ATV and Utility Vehicle winch line combines the powerful recovery strength of their full size brothers in a rugged, compact size.

These mini-monsters combine all metal construction and planetary gear systems for unmatched reliability and line speed in an ATV recovery system.

These winches are all about getting down to work, and getting you through your path.

PE3500 (76-50112) Specifications

Rated Line Pull (single line)	3,500 lbs.(1589 kgs.)
Gear Reduction Ratio	261:1
Motor	Permanent magnet 2 hp 12 volt DC
Drum Size: Diameter/Length	1.5″ (38 mm) x 3.23″ (82 mm)
Cable supplied (Min break force 5,600 lbs.)	7/32″ (5.45 mm) x 50′ (15.2m) galvanized aircraft cable
Overall Dimensions (LxWxH)	13.4″ x 4.22″ x 4.3″ (340 mm x 107.5 mm x 109 mm)
Total Shipping Weight	22 lbs. (10 kg.)
Mounting Bolt Pattern	1.9″ x 3.07″ (48 mm x 78 mm)

PE3500 (76-50112) Performance Specifications

Performance of 1st Layer.
Line Pull		Line Speed (approx.)		Motor Current
Lbs.	Kgs.	FPM	MPM	12v Amp
0	0	1.5	4.6	10
1000	454	9.20	2.80	40
2000	908	7.50	2.30	80
3000	1362	5.00	1.50	120
3500	1589	4.00	1.20	140

Line pull and cable capacity by layer
Layer	Lbs.	Kgs.	Ft.	Meters
1	3500	1589	6.50	2.00
2	2800	1270	14.70	4.50
3	2336	1060	25.00	7.50
4	2000	908	36.00	11.00
5	1750	795	45.00	13.70

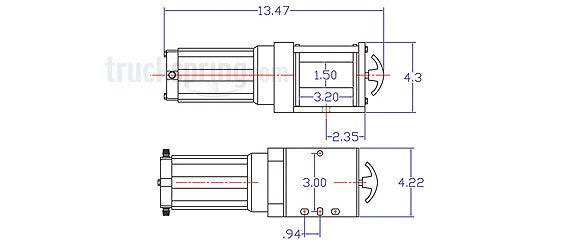

PE3500 (76-50112) Technical Dimensions
