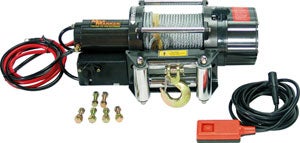

Mile Marker PE4500 Electric Winch Features
- Limited two-year warranty
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free-spooling
- Power IN and power OUT
- 1.4kw (1.9 hp) heavy duty electric
permanent magnetic motor
- Low electric current
The Mile marker ATV and Utility Vehicle winch line combines the powerful recovery strength of their full size brothers in a rugged, compact size.
These mini-monsters combine all metal construction and planetary gear systems for unmatched reliability and line speed in an ATV recovery system.
These winches are all about getting down to work, and getting you through your path.
PE4500 (76-50115) Specifications
| Rated Line Pull (single line) | 4,500 lbs.(2043 kgs.) |
| Gear Reduction Ratio | 294:1 |
| Motor (Permanent magnet) | 1.4 kw (1.9 hp) 12 volt DC (24 volt available) |
| Drum Size: Diameter/Length | 2.5″ (63 mm) x 5.512″ (140 mm) |
| Cable supplied (Min break force 7,000 lbs.) | 1/4″ (6 mm) x 80′ (24.5m) aircraft cable |
| Overall Dimensions (LxWxH) | 17.165″ x 6.2″ x 7.3″ (436 mm x 152.4 mm x 185 mm) |
| Total Shipping Weight | 51 lbs. (23 kg.) |
| Mounting Bolt Pattern | 6.535″ x 4.5″ (166 mm x 114.3 mm)
|
PE4500 (76-50115) Performance Specifications
| Performance of 1st Layer. |
| Line Pull | Line Speed (approx.) | Motor Current |
| Lbs. | Kgs. | FPM | MPM | 12v Amp |
| 0 | 0 | 14 | 4.3 | 35 |
| 1500 | 680 | 6.60 | 2 | 80 |
| 2200 | 998 | 5.20 | 1.60 | 100 |
| 3000 | 1361 | 4.60 | 1.40 | 145 |
| 4500 | 2041 | 3.30 | 1 | 170 |
| Line pull and cable capacity by layer |
| Layer | Lbs. | Kgs. | Ft. | Meters |
| 1 | 4500 | 2041 | 15 | 4.60 |
| 2 | 3880 | 1760 | 31.50 | 9.60 |
| 3 | 3420 | 1551 | 50 | 15.20 |
| 4 | 3050 | 1384 | 70 | 21.20 |
| 5 | 2750 | 1247 | 80 | 24.50 |

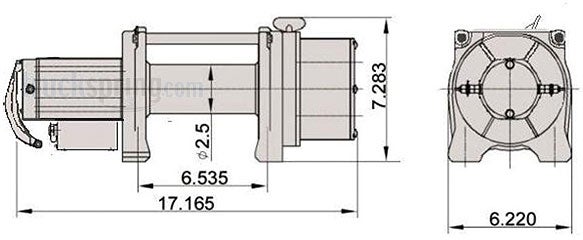

PE4500 (76-50115) Technical Dimensions
Winch Comparison Video
Watch this 17 minute educational video to: learn the differences between an electric and hydraulic winch; the differences between the H and HI Series Hydraulic Winch; and see a test comparison of several manufacturer's winches.
Click Here.. to see the video.
- Availability: In Stock
- Capacity: 4,500 lbs.
- Winch Type: Electric

|
