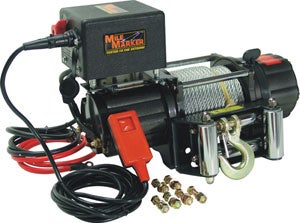

Mile Marker PE6000 Electric Winch

Mile Marker's PE & E Series feature the classic designed permanent magnet motors that sprung World Wide Abuse from an electric-powered system.

These potent power-plants feature a low profile control pack and are the best suited additions to vehicles looking for a recovery outfit in the 6000 - 9000 pound range. They offer a practical choice for vehicles small and large alike.

For more information on Mile Marker Electric Winches, click here.

Coming in April: Mile Marker's PE6000 will be available in a new, low-profile design. For more information, or to pre-order the low-profile PE 6000, click here.

PE6000 (76-50130) Specifications

Rated Line Pull (single line)	6,000 lbs.(2722 kgs.) Single line
Gear Train	Planetary gear system for fast line speed
Gear Reduction Ratio	210:1
Motor	Permanent magnet 3.6 hp (2.7 kw) 12 volt (24 volt available)
Drum Size: Diameter/Length	2.5" (63 mm) x 5.512" (140 mm)
Cable supplied (Min break force 9,800 lbs.)	5/16" (7.94 mm) x 85" (26.06m) galvanized aircraft cable with replaceable hook
Overall Dimensions (LxWxH)	17.244 x 6.22 x 11.614" (438 mm x 158 mm x 295 mm)
Total Shipping Weight	68 lbs. (31 kg.)
Mounting Bolt Pattern	6.535" x 4.5" (166 mm x 114.3 mm)

PE6000 (76-50130) Performance Specifications

Performance of 1st Layer.
Line Pull		Line Speed (approx.)		Motor Current
Lbs.	Kgs.	FPM	MPM	12v Amp	24v Amp
0	0	15	4.60	35	15
1000	454	11	3.40	80	50
3000	1361	8	2.50	100	90
5000	2268	5	1.50	145	120
6000	2722	4.60	1.40	170	140

Line pull and cable capacity by layer
Layer	Lbs.	Kgs.	Ft.	Meters
1	6000	2722	12.70	3.87
2	5000	2268	27.50	8.38
3	4250	1928	44	13.41
4	3720	1687	64	19.51
5	3300	1497	85	25.91
