Mile Marker PE8000 Electric Winch - Low Profile

Mile Marker's PE & E Series feature the classic designed permanent magnet motors that sprung World Wide Abuse from an electric-powered system.

These potent power-plants feature a low profile control pack and are the best suited additions to vehicles looking for a recovery outfit in the 6000 - 9000 pound range. They offer a practical choice for vehicles small and large alike.

For more information on Mile Marker Electric Winches, click here.

PE8000 (76-50240) Specifications

Rated Line Pull (single line)	8,000 lbs.(3629 kgs.)
Gear Train	Planetary gear system for fast line speed
Gear Ratio	210:1
Motor	Permanent magnet 4.1 hp (3 kw), 12 volt (24 volt available)
Drum Size: Diameter/Length	2.5" (63 mm) x 9" (228 mm)
Cable supplied (Min break force 9,800 lbs.)	5/16" (7.94 mm) x 100' (30.5m) galvanized aircraft cable with replaceable hook
Overall Dimensions (LxWxH)	22" x 6.22" x 7.283" (558.8 mm x 158 mm x 185 mm)
Total Shipping Weight	80 lbs. (36 kg.)
Mounting Bolt Pattern	10" x 4.5"(4 bolts,3/8") (254 mm x 114.3 mm)

PE8000 (76-50240) Performance Specifications

Performance of 1st Layer.
Line Pull		Line Speed (approx.)		Motor Current
Lbs.	Kgs.	FPM	MPM	12v Amp
0	0	13	3.90	35
2000	907	11	3.30	100
4500	2041	9	2.70	180
6000	2722	6	1.80	230
8000	3629	5	1.50	300

Line pull and cable capacity by layer
Layer	Lbs.	Kgs.	Ft.	Meters
1	8000	3629	15	4.60
2	6335	2874	38	11.60
3	5243	2378	64	19.51
4	4473	2029	95	29
5	3900	1769	100	30.50

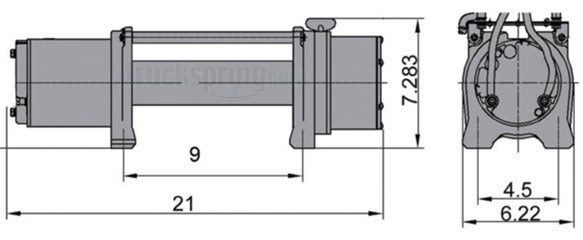

PE8000 (76-50240) Technical Dimensions

Winch Comparison Video

Watch this 17 minute educational video to: learn the differences between an electric and hydraulic winch; the differences between the H and HI Series Hydraulic Winch; and see a test comparison of several manufacturer's winches.

Click Here.. to see the video.
