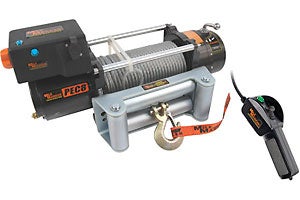

Mile Marker PEC-8 Electric Winch

A favorite in Jeep and Mid Size Off-Road Circles, Mile Marker's 8,000 pound winch has been updated to include a new clutch design and more clearance under the tie-bars. With illuminated controls, sealed solenoids, and an integrated kill switch, the PEC series is a proven winch design at an unmatched value.

Rated Line Pull (single line)	8,000 lbs.(3629 kgs.)
Gear Train	3 Stage Planetary gear system for fast line speed
Gear Ratio	212:1
Motor	Permanent magnet 4.0 hp (3 kw), 12 volt (24 volt available)
Drum Size: Diameter/Length	2.5" (63 mm) x 9" (228 mm)
Cable supplied (Min break force 9,800 lbs.)	5/16" (7.94 mm) x 100' (30.5m) galvanized aircraft cable with replaceable hook
Overall Dimensions (LxWxH)	22" x 6.22" x 7.283" (558.8 mm x 158 mm x 185 mm)
Total Shipping Weight	81 lbs. (36 kg.)
Mounting Bolt Pattern	10" x 4.5"(4 bolts,3/8") (254 mm x 114.3 mm)

PEC-8 (77-50140) Performance Specifications

Performance of 1st Layer.
Line Pull		Line Speed (approx.)		Motor Current
Lbs.	Kgs.	FPM	MPM	12v Amp
0	0	13	4.00	35
2000	907	11	3.40	80
4000	1814	9	2.70	160
6000	2722	6	1.80	230
8000	3629	5	1.50	300

Line pull and cable capacity by layer
Layer	Lbs.	Kgs.	Ft.	Meters
1	8000	3629	18	5.49
2	6335	2874	40	12.19
3	5243	2378	66	20.12
4	4473	2029	96	29.26
5	3900	1769	100	30.48
