Mile Marker SE12000C Electric Winch Features
- Low Profile Design
- Limited two-year warranty
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free Spooling
- Power IN and power OUT
- 4.8 hp (3.6 kw) heavy duty series wound DC motor
- Low electric current
- Hardened drum
The Mile Marker SEC and SI Series Winch boast a giant 4.8 horsepower series wound motor to handle anything you can throw at it on the trail.
The SEC Series winches give the freedom of an independant, low-profile control pack - perfect for custom or detachable mount applications.
Looking for an integrated solenoid, one piece design winch? Check out the SI Series SI12000 winch which offers the same 12000 lbs of line pull, but with integrated solenoid technology in a one piece design.
Both SEC and SI systems offer superior pulling power to keep you out of trouble...take the lead with Mile Marker Heavy Duty Winches!
SE12000C (76-50251) Specifications
| Rated Line Pull (single line) |
12,000 lbs.(5443 kgs.) |
| Gear Reduction Ratio |
295.75:1 |
| Motor (Series Wound) |
4.8 hp (3.6 kw), 12 volt DC (24 volt available) |
| Drum Size |
Diameter:2.5" (63 mm) x Length 9" (228 mm) |
| Cable supplied (Min break force 14,400 lbs.) |
3/8" (9.53 mm) x 100' (30.5m) galvanized aircraft cable with replaceable hook |
| Overall Dimensions (LxWxH) |
21.57" x 6.3" x 7.91" (548 mm x 160 mm x 201 mm) |
| Total Shipping Weight |
92 lbs. (42 kg.) |
| Mounting Bolt Pattern |
10" x 4.5" (254 mm x 114.3 mm) |
SE12000C (76-50251) Performance Specifications
| Performance of 1st Layer. |
| Line Pull |
Line Speed |
Line Speed |
Motor Current |
|
12 Volt |
24 Volt |
12v |
24v |
| Lbs. |
Kgs. |
fpm |
mpm |
fpm |
lpm |
Amp |
Amp |
| 0 |
0 |
14.60 |
4.45 |
16.50 |
5.00 |
90 |
58 |
| 2000 |
907 |
12.81 |
3.90 |
15.10 |
4.60 |
145 |
95 |
| 4000 |
1814 |
9.68 |
2.95 |
13.45 |
4.10 |
185 |
120 |
| 6000 |
2722 |
7.90 |
2.41 |
11.11 |
3.39 |
230 |
160 |
| 8000 |
3629 |
7.07 |
2.15 |
9.50 |
2.91 |
270 |
190 |
| 10000 |
4536 |
5.06 |
1.54 |
8.26 |
2.52 |
315 |
230 |
| 12000 |
5443 |
4.45 |
1.36 |
7.15 |
2.18 |
315 |
250 |
| Line pull and cable capacity by layer |
| Layer |
Lbs. |
Kgs. |
Ft. |
Meters |
| 1 |
12000 |
5443 |
15 |
5 |
| 2 |
10200 |
4627 |
38 |
11.50 |
| 3 |
8400 |
3810 |
64 |
19.50 |
| 4 |
7300 |
3310 |
95 |
29 |
| 5 |
6500 |
2948 |
100 |
30.50 |

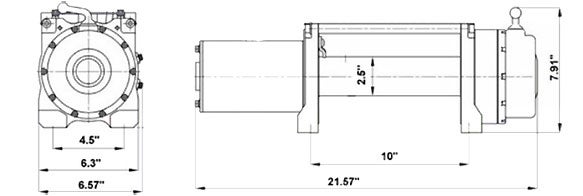

SE12000C (76-50251) Technical Dimensions
Winch Comparison Video
Watch this 17 minute educational video to: learn the differences between an electric and hydraulic winch; the differences between the H and HI Series Hydraulic Winch; and see a test comparison of several manufacturer's winches.
Click Here.. to see the video.
- Availability: In Stock
- Capacity: 12,000 lbs.
- Winch Type: Electric
|
