Mile Marker V-10 Variable Speed Electric Winch

Mile Marker V-10 Electric Winch

Mile Marker unleashes their best performing, most innovative winches to date: the V-Series electric winches.

Featuring ground-breaking Solid-State controls (NO SOLENOIDS!), Variable Speed Line Control, Waterproof Sealing, and blazing line speeds, this winch line will prove to be the ultimate winch on the market.

A durable, dual-compound black polyurethane coating and stainless steel hardware put the finishing touches on this 10,000 pound winch that is built to handle anything you can throw at it. If you are looking for the winch with awesome looks, and unmatched performance, look no further.

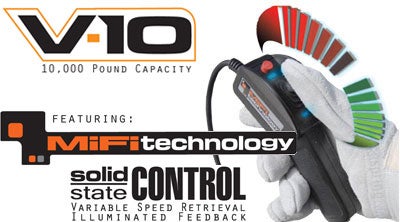

"Get in Control" of your recovery, as you use the handlebar-mounted Joystick to precisely toggle the line speed needed to safely and effectively get the job done. The illuminated Joystick Control also signals crucial safety features like low battery voltage on the vehicle, as well as high-operating temperature warnings.

V-10 (77-52148) 10,000lb Winch Specifications

Rated Line Pull (single line)	10,000 lbs. (4536 kg)
Gear Train	3 Stage Planetary gear system for fast line speed
Gear Ratio	130:1
Motor	6.5 HP series wound (4.9 KW) 12V DC
Drum Size: Diameter/Length	2.5” X 9” (63.5 mm X 228.6 mm)
Cable supplied (Min break force 14,400, 6531 kg lbs.)	3/8" (9.53 mm) x 100' (30.5m) galvanized aircraft cable with replaceable hook
Overall Dimensions (LxWxH)	23.30” X 6.63” X 8.83” (591.82mm X 168.4 mm X 224.3 mm)
Total Shipping Weight	102 lbs (46.3 Kg)
Mounting Bolt Pattern	4 Bolt Pattern, 4.5” X 10” (114.3 mm X 254 mm)

V-10 (77-52148) Winch Specifications

Performance of 1st Layer.
Line Pull		Line Speed (approx.)		Motor Current
Lbs.	Kgs.	FPM	MPM	12v Amp
0	0	38.5	11.7	75
2000	907	18.5	5.6	150
4000	1814	15	4.6	210
6000	2722	11.5	3.5	265
8000	3629	9.6	2.9	325
10000	4536	8.1	2.5	385

Line pull and cable capacity by layer
Layer	Lbs.	Kgs.	Ft.	Meters
1	10000	4536	17	5.18
2	8000	3629	37	11.28
3	6800	3084	62	18.9
4	6000	2722	92	28.04
5	5200	2359	100	30.48
