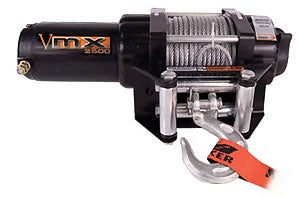

Mile Marker VMX 2500 Electric Winch
Introducing the VMX 2500 ATV winch, featuring the revolutionary MiFi Technology solid state control system. This innovative control module eliminates the problematic solenoid switch of the past, to replace it with the more robust and reliable MOSFET driven controller. The completely sealed control module provides a clean, steady internal operation, and the innovation for VARIABLE SPEED RECOVERY, the first DC recovery winch in the world with this feature.

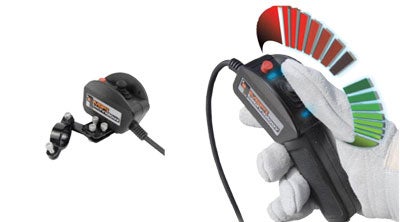

"Get in Control" of your recovery, as you use the handlebar-mounted Joystick to precisely toggle the line speed needed to safely and effectively get the job done. The illuminated Joystick Control also signals crucial safety features like low battery voltage on the vehicle, as well as high-operating temperature warnings.
Mile Marker VMX 2500 Electric Winch Features
- MiFi technology
- Variable speed
- Illuminated controls
- Power IN and power OUT
- Automatic over temp and low voltage cut off
- Dynamic brake system
- Includes both hand-held remote and handlebar control
VMX 2500 (76-72106) Specifications
| Rated Line Pull (single line) |
2,500 lbs.(1134 kgs.) |
| Control Pendant |
Illuminated handlebar and 12' remote |
| Gear Reduction Ratio |
153:1 |
| Motor |
Permanent magnet 1.6 hp (1.2 kw), 12 volt |
| Drum Size |
Diameter:2? (50 mm) x Length 2.95? (75 mm) |
| Cable supplied (Min break force 4,200 lbs.) |
3/16? (4.76 mm) x 50' (15.2m) galvanized aircraft cable with replaceable hook |
| Overall Dimensions (LxWxH) |
13.4? x 5? x 5? (330 mm x 127 mm x 127 mm) |
| Total Shipping Weight |
24 lbs. (11.8 kg.) |
| Mounting Bolt Pattern |
3? x 4.87? (76.2 mm x 123.7 mm) |
VMX 2500 (76-72106) Performance Specifications
| Line pull and cable capacity by layer |
| Layer |
Lbs. |
Kgs. |
| 1 |
2500 |
1134 |
| 2 |
2150 |
975 |
| 3 |
1900 |
862 |
| 4 |
1700 |
771 |
| 5 |
1500 |
680 |
Mile Marker ATV Winch Video
This video from Mile Markers shows some of the features of new VMX 2500 Electric Winch with MiFi technology.
Click play to start the video.
- Availability: Ships in 3 to 4 days
- Capacity: 2,500 lbs.
- Winch Type: Electric
|
