The Bilstein 5160 Series are direct-fit to each specific vehicle application, avoiding the fabrication generally associated with being able to run a high performance reservoir shock.
- Instructions: Click to View Bilstein 46mm Monotube Shock Absorber Installation Intructions.
- Series:5160 Series
- Old Part Number:F4-BR5-G713-H0
- Collapsed Length (IN):10.79
- Collapsed Length (MM):274
- Extended Length (IN):16.24
- Extended Length (MM):412.5
- Body Design:46mm ID smooth body (Non-coilover)
- Boot Included:No
- Finish:Zinc plated
- Internal Design:Monotube
- Lower Mount Type:Eye 14.1mm
- Upper Mount Type:Stem
- Reservoir:Yes
- Optional Reservoir Clamp11-176015
- Availability:Ships in 3 to 4 days
Vehicle Fit:
This product is engineered to work with specific vehicles. To verify that it works with your vehicle, select the vehicle make, year, and model. Only the make, year, and models that this product fits, will display in the selection criteria below:
| -Select Make- |
| Chevrolet |
| GMC |
| Hummer |
|
|
| |
|
|
| |
 | Loading… |
| Loading… |
| Loading… |
|
 | Loading… |
|
| |
|
|
| Loading… |
| Loading… |

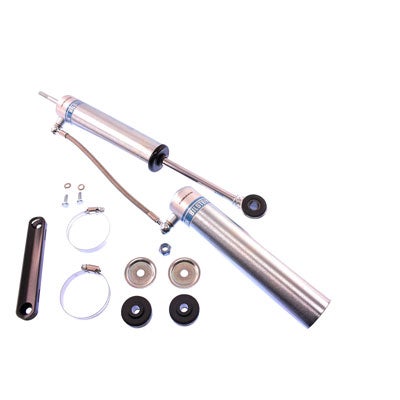

Bilstein 5160 Series - Shock Absorber with Stock Mount and Remote Reservoir
Please Note: Pricing is for (1) shock. It is recommended that you replace shocks in pairs (both front shocks, or both rear shocks).
This race inspired, production monotube shock features a remote reservoir. For Non-Stock Location Fit and Custom applications. Available in 5" - 14" travel lengths with various valvings.
The product benefits at a glance:
- Bilstein’s industry leading monotube design
- Unique digressive valving system instantly produces full damping capability
- Remote reservoir dramatically increases shock oil capacity for even greater heat dissipation and damping sensitivity
- Reservoir mounting configuration designed specifically for each vehicle application
- For increased wheel travel and more shaft movement, the "floating" dividing piston is located in the reservoir
- Bilstein’s exclusive Triple-C Technology® finish provides easy care and lasting great looks
- Includes reservoir mounting kit and detailed instructions
- Shown with optional billet aluminum reservoir mounting clamp (part #11-176015)
For a more detailed review of some of the features and benefits of the 5160 Series Shock Absorber, take a look at this video!
Download the product catalog PDF
Monotube Technology - the Number-One Choice in Motorsports
 The original and best mono-tube gas pressure shock absorbers all wear the Bilstein name, because Bilstein shock absorbers are the best there is. The number-one choice in motor-sports and for series-production sports cars, the monotube shock absorber has a unique design that affords the freedom to choose the ideal installation position or location.
- Monotube shocks feature a large surface on the working piston which increases the damping power and provides better handling.
- The design of the monotube shock improves the dissipation of heat which improves the life of the shock and enables a consistent and dependable level of absorber performance.
- Bilstein's Upside-Down Technology creates a safer functioning shock absorber.
Gas Pressure Technology - Full Damping Power Under Extreme Stress
 Bilstein's gas pressure technology has become an established standard in the automotive industry. By employing a chamber of high pressure gas to keep the oil in the absorber under pressure, Bilstein's Gas Pressure Technology prevents the shock from becoming over-heated. Over-heating can cause the oil within the shock to begin foaming. Because this technology prevents over-heating, Bilstein shock absorbers provide full damping power even when the shocks are placed under extreme stress. This feature is most evident in the self-lowering piston.
- The gas pressure technology allows for a faster responding piston which allows for a higher level of traction and more precise handling.
- With improved traction and handling comes a safer driving experience.
- Ideal in performance and sport suspensions.
Road-Tested by Bilstein - for the Ultimate Driving Experience
In order to achieve the perfect driving experience, Bilstein engineers design their products with the driving experience in mind. This allows them to create innovate technologies which provide a safe comfortable ride even under extreme performance conditions. All Bilstein shock absorbers and suspension kits are rigorously tested to perfection.
In the German town of Nürburg is the Nürburgring motor sport complex. This complex features the Nordschleife, a track where formula one and other races are often held which is comprised of varied driving conditions. This extreme environment is where Bilstein pushes its shocks, struts and suspension kits to the limit. Only when these products can withstand the hardships of this course do they earn the Bilstein label.
Bilstein: A Trusted Name Worldwide For Superior Product Technology
Proven design technology, a superior manufacturing process and a commitment to quality control characterize the Bilstein shock absorber production process. At Bilstein over 40% of the production personnel are involved with quality control to maintain their industry-leading level of shock absorber efficiency and long life performance.
In this pursuit of excellence, Bilstein has received worldwide acclaim for quality shock absorbers that have set new industry standards. Setting high standards has always been a top priority with Bilstein and a consistent set of parameters and performance guidelines go into the development of each Bilstein shock application.
Bilstein engineers meld proven methods with advanced technologies for products that pass the test of time.
For more information on Bilstein shock absorbers and struts, or call us at 1-800-358-4751.
