The 450C-12V Features include a standard 1/4" stainless steel braided leader hose with inline check valve and insulated wiring for simple installation. Must be used with a 150 PSI or lower pressure, non-adjustable pressure switch when used with an air tank.

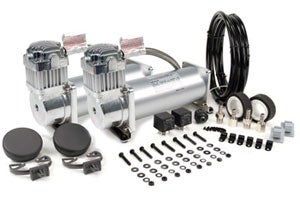

45040 SPECIFICATIONS:
- Dual 450C Silver Compressor (100% Duty Cycle @ 100 PSI)
- Dual 12-Volt, 40-amp Relays
- 110 PSI On . 145 PSI Off Pressure Switch
- Maximum Total Amp Draw: 40 Amps (Amp draw of Two 450C's)
- Maximum Total CFM @ 0 PSI: 3.28 CFM
400 SERIES STANDARD FEATURES: - Oil-less Design
- High Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dust Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Inline Check Valve
- Remote Mountable Intake Filter Assembly
Dual 450C Tank Fill Rates | 5 Gallon Air Tank | Fill Rate | | 0 To 145 PSI | 3 Min. 10 Seconds | | 110 To 145 PSI | 1 Min. 05 Seconds |
- Duty Cycle: 100%
- Availability: In Stock
|
