Steer Axle Brake Camshafts
These tough brake camshafts for steer axle applications will keep you in control while slowing and stopping for your heavy duty truck or tractor.
Drive Axle Brake Camshafts
These rugged brake camshafts for drive axle applications have the stopping power you need for your heavy duty truck or tractor.
Trailer Axle Brake Camshafts
These durable brake camshafts for trailer axle applications are strong enough to stop even the heaviest of loads.
Xtreme Cam Brake Camshaft
Xtreme Cams feature a unique cam bushing that runs the entire length of the camshaft. These brake camshaft & bushing systems are for extreme duty air brake systems.

Restore Braking Performance of Semi Trucks, Tractors, and Trailers

Restore your brakes to their peak level of performance with a new brake camshaft (S-Cam) for your truck, tractor or trailer. Even under normal conditions your S-Cams can become worn or damaged. When the S-Cam becomes worn, the effectiveness of your braking can suffer. This is why it is important to replace your brake camshafts whenever they show signs of wear. S-Cams are available for each axle type and are made in many varieties so it is essential to know the measurements of the camshaft that is being replaced.

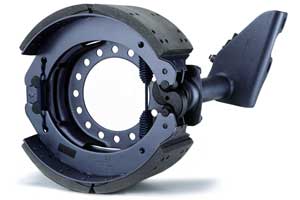

brake assembly with camshaft

Camshaft Installation

When replacing the camshaft of your brakes on your truck, tractor or trailer, it is very important to replace the bushings, washers, seals and lock rings. These components should be replaced together to avoid uneven wear between these items. Such uneven wear can lead to excessive camshaft deflection, causing your brakes to function improperly or even fail.

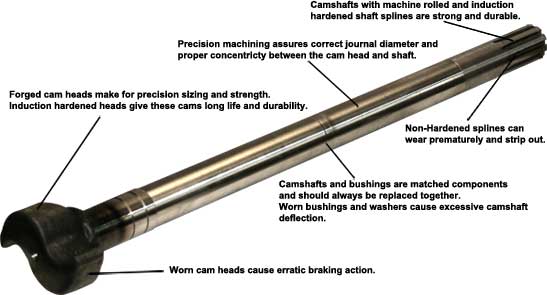

brake camshaft

How Brake Camshafts Work

The Brake Camshaft is a part of the brake linkage for heavy duty truck air brakes. The camshaft is the component responsible for spreading the brake shoes apart. In air brake systems, the brake chamber expands and the operating rod pushes on the (brake) slack adjuster. As the operating rod pushes on the slack adjuster, it rotates around the shaft of the S-Cam. When the camshaft is rotated the eccentric shape of the cam head pushes the brake shoes apart. The brake shoes separate and cause friction between the brake lining and the brake drum. It is this friction that slows and stops the vehicle.

Popular Heavy Duty S Cams

Part #: C1224A-L 24 inch Xtreme Cam Brake Camshaft - Left Hand - C1224A-L
For multiple applications, trailer axle, Q+ shoe, 28 Spline, 24.375 inch length, 1-1/16 inch head, 2 inch spider diameter, 1.5 inch continuous journal diameter, left hand rotation.
Your Price
$110.02
List Price
$123.29
You Save
$13.27
Part #: C1224A-R 24 inch Xtreme Cam Brake Camshaft - Right Hand - C1224A-R
For multiple applications, trailer axle, Q+ shoe, 28 Spline, 24.375 inch length, 1-1/16 inch head, 2 inch spider diameter, 1.5 inch continuous journal diameter, right hand rotation.
Your Price
$110.02
List Price
$123.29
You Save
$13.27
Part #: 04-562301 22-7/8 inch Brake Camshaft - Right Hand - 04-562301
For a 16-1/2" brake, Spicer XL trailer axle, 1-1/2" - 28 spline, 22-7/8" effective length, 1-5/8 inch journal, 1-1/8" head, right hand rotation.
Your Price
$49.10
List Price
$58.92
You Save
$9.82
Part #: 04-811621 16-1/8 inch Brake Camshaft - Right Hand - 04-811621
For a 16-1/2" brake, Fruehauf trailer axle, 1-5/8" - 37 spline, 16-1/8" effective length, 1-5/8" journal, 1-3/8" head, right hand rotation.
Your Price
$28.58
List Price
$34.30
You Save
$5.72
Part #: 04-371151 11-1/2 inch Brake Camshaft - Right Hand - 04-371151
For a 16-1/2" brake, Eaton drive axle, 1-1/2" - 10 spline, 11-1/2" effective length, 1-1/2" journal, 1-3/8" head, right hand rotation.
Your Price
$27.93
List Price
$33.52
You Save
$5.59
Part #: C1220A-R 20 inch Xtreme Cam Brake Camshaft - Right Hand - C1220A-R
For multiple applications, trailer axle, Q+ shoe, 28 Spline, 20.432 inch length, 1-1/16 inch head, 2 inch spider diameter, 1.5 inch continuous journal diameter, right hand rotation.
Your Price
$100.74
List Price
$112.90
You Save
$12.16
Part #: 04-562702 26-15/16 inch Brake Camshaft - Left Hand - 04-562702
For a 16-1/2" brake, Spicer XL trailer axle, 1-1/2" - 28 spline, 26-15/16" effective length, 1-5/8 inch journal, 1-1/8" head, left hand rotation.
Your Price
$56.27
List Price
$67.52
You Save
$11.25
Part #: C1220A-L 20 inch Xtreme Cam Brake Camshaft - Left Hand - C1220A-L
For multiple applications, trailer axle, Q+ shoe, 28 Spline, 20.432 inch length, 1-1/16 inch head, 2 inch spider diameter, 1.5 inch continuous journal diameter, left hand rotation.
Your Price
$100.74
List Price
$112.90
You Save
$12.16
Part #: 04-562701 26-15/16 inch Brake Camshaft - Right Hand - 04-562701
For a 16-1/2" brake, Spicer XL trailer axle, 1-1/2" - 28 spline, 26-15/16" effective length, 1-5/8 inch journal, 1-1/8" head, right hand rotation.
Your Price
$56.27
List Price
$67.52
You Save
$11.25
Part #: 04-571742 17-3/8 inch Brake Camshaft - Left Hand - 04-571742
For Multiple applications, trailer axle, 1-1/2" - 10 spline, 17-3/8" effective length, 1-1/2" journal, 1-3/8" head, left hand rotation.
Your Price
$32.95
List Price
$39.54
You Save
$6.59
