Mile Marker E9000 Electric Winch Features
- Limited two-year warranty
- planetary gear system for fast line speed
- Free-spooling
- Automatic load-holding brake
- Power IN and power OUT
- 15 ft. illuminated remote switch
Mile Marker's PE & E Series feature the classic designed permanent magnet motors that sprung World Wide Abuse from an electric-powered system.
These potent power-plants feature a low profile control pack and are the best suited additions to vehicles looking for a recovery outfit in the 6000 - 9000 pound range. They offer a practical choice for vehicles small and large alike.
For more information on Mile Marker Electric Winches, click here.
E9000 (76-50042) Specifications
| Rated Line Pull |
9,000 lbs. (4,090 kgs.) single line |
| Gear Train |
Planetary - 210:1 |
| Overall |
21.45 in. x 6.00 in. x 6.38 in. |
| Motor |
Permanent magnet(12 volt), 4.5 hp (24 volt available) |
| Cable (Min break force 14,400 lbs.) |
3/8" (9.53 mm) x 100' (30.5m) galvanized aircraft cable with replaceable hook |
| Total Shipping Weight |
84 lbs. |
| Bolt Pattern |
10" x 4.5" (254 mm x 114.3 mm) |
E9000 (76-50042) Performance Specifications
| Layer of Cable |
1 |
2 |
3 |
4 |
| (lbs.) |
9,000 |
7,300 |
6,200 |
5,400 |
| (kgs.) |
4,090 |
3,318 |
2,818 |
2,454 |
| Line speed - no load (FPM) |
14 |
20 |
26 |
32 |
| (Amp draw is 55 amps - no load) |
|

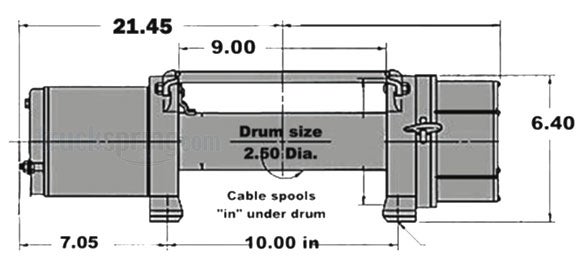

E9000 (76-50042) Technical Dimensions
Winch Comparison Video
Watch this 17 minute educational video to: learn the differences between an electric and hydraulic winch; the differences between the H and HI Series Hydraulic Winch; and see a test comparison of several manufacturer's winches.
Click Here.. to see the video.
- Availability: In Stock
- Capacity: 9000 lbs.
- Winch Type: Electric
|
