Harris Style Leaf Spring Bushings

Harris HB Style bushings are designed for automotive uses.

Found 36 Matching Products
Filter the list of Matching Products by selecting any of these options:
  1. 0.875 inch
  2. 1.000 inch
  3. 1.063 inch
  1. 1.109 inch
  2. 1.125 inch
  3. 1.219 inch
  1. 1.375 inch
  2. 1.563 inch
  3. 1.875 inch
  1. 2.000 inch
  2. 30mm
  3. 33mm (1.299 inch)
  1. 35mm (1.378 inch)
  2. 39mm
  3. 40mm
  1. 0.875 inch
  2. 1.062 inch
  3. 1.000 inch
  1. 1.125 inch
  2. 1.203 inch
  3. 1.250 inch
  1. 1.313 inch
  2. 1.343 inch
  3. 1.375 inch
  1. 1.438 inch
  2. 1.500 inch
  3. 30mm
  1. 31mm (1.22 inch)
  2. 32mm (1.26 inch)
  3. 33.02mm
  1. 38mm
  2. 46mm
  1. 1.250 inch
  2. 1.313 inch
  3. 1.375 inch
  4. 1.438 inch
  1. 1.500 inch
  2. 1.688 inch
  3. 1.750 inch
  4. 1.813 inch
  1. 1.859 inch
  2. 1.875 inch
  3. 1.937 inch
  4. 1.938 inch
  1. 2.00 inch
  2. 2.375 inch
  3. 36mm
  4. 37mm (1.46 inch)
  1. 38mm (1.496 inch)
  2. 38.45mm
  3. 47mm
  4. 52mm
  1. 0.563 inch
  2. 0.625 inch
  3. .625 inch
  1. 0.500 inch
  2. 0.562 inch
  3. 0.750 inch
  1. 0.790 inch
  2. 0.875 inch
  3. 17.5mm
  1. 18mm
  2. 18mm (0709 inch)
  3. 20mm (0787 inch)
  1. 22mm
  1. 1.000 inch
  2. 1.125 inch
  1. 1.250 inch
  2. 1.500 inch
  1. 1.625 inch
  2. 1.875 inch
  1. 2.125 inch
  2. 2.188 inch
  1. 2.250 inch
  2. 40mm (1.57 inch)
  1. 42mm (1.654 inch)
  2. 47mm
  1. Yes
  1. Harris
Grid List
v
SKU HB-930
$2.48
Leaf Spring Bushing | Harris | Chevy/GM

Harris style rubber leaf spring bushing HB-930 is designed for Chevy and GMC automotive leaf springs...   Details

16 In Stock

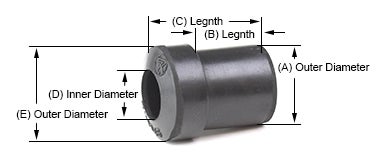

  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.125 inch
  • B-Length:1.438 inch
  • D-Inner Diameter:0.563 inch
  • C-Length:1.938 inch
  • Manufacturers Part Number:3890386
  • Automann Number:MH2106
  • Chevrolet / GM Number:3890386
  • MPN: HB-930
SKU HB-1103
$8.74
Leaf Spring Bushing | Harris | Toyota

Harris Style rubber leaf spring bushing HB-1103 is designed to replace your worn Toyota leaf spring ...   Details

Typically ships in 7 to 10 business days.
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:30mm
  • B-Length:46mm
  • D-Inner Diameter:18mm
  • C-Length:52mm
  • Automann Number:MH4493
  • Toyota Number:9038518017
  • UPC: 889626081392
  • MPN: HB-1103
SKU MH4481
$4.89
Leaf Spring Bushing | Harris

Harris style rubber leaf spring bushing MH4481 is designed for automotive leaf springs.   Details

Typically ships in 7 to 10 business days.
  • A-Outer Diameter:39mm
  • B-Length:38mm
  • D-Inner Diameter:22mm
  • C-Length:47mm
  • Vehicle Application:Nissan
  • Isuzu Number:8941133232
  • Mitsubishi Number:MB025153
  • Nissan Number:550460T000
  • UPC: 889626081293
  • MPN: MH4481
SKU HB-1005
$7.52
Leaf Spring Bushing | Harris | Chevy/GM

Harris style rubber leaf spring bushing HB-1005 is designed for Chevrolet Blazer, Suburban and GMC J...   Details

Typically ships in 7 to 10 business days.
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.109 inch
  • B-Length:1.500 inch
  • D-Inner Diameter:0.790 inch
  • C-Length:1.859 inch
  • Vehicle Application:Chevrolet, GMC
  • Automann Number:MH4478
  • Chevrolet / GM Number:15565053
  • Flagg Number:HB-1005
  • MPN: HB-1005
SKU HB-1110
$4.57
Leaf Spring Bushing | Harris | Nissan

Harris style rubber leaf spring bushing HB-1110 is designed for Nissan automotive leaf springs.   Details

20+ In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:33mm (1.299 inch)
  • B-Length:32mm (1.26 inch)
  • D-Inner Diameter:20mm (0787 inch)
  • C-Length:38mm (1.496 inch)
  • Vehicle Application:Nissan, Used in Frontier and Xterra rear spring eye beginning 2005
  • E-Outer Diameter:42mm (1.654 inch)
  • Note:Used in springs 69-283, 69-285, 69-287, 69-289, 69-291, 69-293
  • Automann Number:MH4688
  • Nissan Number:55046-01G00, 5504601G00, 55047-EB301, 55047EB301, HB-1110, HB1110
  • MPN: HB-1110
SKU HB-1004
$3.30
Leaf Spring Bushing | Harris | Toyota

Harris style rubber leaf spring bushing HB-1004 is designed for Toyota automotive leaf springs.   Details

20+ In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:30mm
  • B-Length:30mm
  • D-Inner Diameter:18mm
  • C-Length:36mm
  • Note:For 2-3/8 inch wide spring. Fits Toyota Pickups such as 90-113, 90-161, 90-163. T100 pickups 90-147, 90-157, 90-159, 90-177
  • Automann Number:MH4476
  • Toyota Number:9038518046
  • MPN: HB-1004
SKU HB-996
$1.75
Leaf Spring Bushing | Harris | Chevy/GM | Jeep

Harris style rubber leaf spring bushing HB-996 is designed for Chevy, GMC and Jeep automotive leaf s...   Details

16 In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.125 inch
  • B-Length:1.375 inch
  • D-Inner Diameter:0.750 inch
  • C-Length:2.00 inch
  • E-Outer Diameter:1.250 inch
  • Note:Used in 1970 on 4X4 Front Spring
  • Automann Number:MH2238
  • Chevrolet / GM Number:3975203
  • Jeep Number:5355966
  • MPN: HB-996
SKU HB-880
$1.83
Leaf Spring Bushing | Harris | Chevy/GM

Harris style rubber leaf spring bushing HB-880 is designed for automotive leaf springs.   Details

20+ In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.125 inch
  • B-Length:1.250 inch
  • D-Inner Diameter:0.625 inch
  • C-Length:1.750 inch
  • E-Outer Diameter:1.250 inch
  • Automann Number:MH2006
  • Dayton Number:HB-880
  • GMC Number:1460753, 559630
  • MPN: HB-880
SKU HB-1000
$3.93
Leaf Spring Bushing | Harris | GM

Harris style rubber leaf spring bushing HB-1000 is designed for GM automotive leaf springs.   Details

20+ In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.563 inch
  • B-Length:1.375 inch
  • D-Inner Diameter:0.563 inch
  • C-Length:2.375 inch
  • Vehicle Application:Buick, Cadillac, Chevrolet, Oldsmobile, Pontiac
  • E-Outer Diameter:1.875 inch
  • Note:For 2-1/2 inch wide spring
  • Automann Number:MH4468
  • Chevrolet / GM Number:480902, 499473
  • MPN: HB-1000
SKU HB-889
$1.82
Leaf Spring Bushing | Harris | Chrysler, Dodge, Ford

Harris style rubber leaf spring bushing HB-889 is designed for Chrysler, Dodge and Ford automotive l...   Details

20+ In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.000 inch
  • B-Length:1.250 inch
  • D-Inner Diameter:0.563 inch
  • C-Length:1.750 inch
  • Vehicle Application:Chrysler, Dodge, Ford, Dodge Truck, International, Jeep
  • E-Outer Diameter:1.250 inch
  • Note:For 2-1/2 inch wide spring
  • Automann Number:MH2024
  • Chrysler Number:5355841, 939797
  • Dodge Number:1400269, 2403154, 3643989
  • Ford Number:MG5791A
  • International Number:165743R1, 166743R1
  • Jeep Number:3643989, 939797
  • Moog Number:HR106, HR889, K7308
  • MPN: HB-889
SKU HB-831
$1.98
Leaf Spring Bushing | Harris | Ford

Harris style rubber leaf spring bushing HB-831 is designed for Ford automotive leaf springs.   Details

20+ In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.000 inch
  • B-Length:1.250 inch
  • D-Inner Diameter:0.500 inch
  • C-Length:1.688 inch
  • Vehicle Application:Ford, Lincoln, Mercury, Jeep
  • E-Outer Diameter:1.125 inch
  • Note:For 2-1/2 inch wide spring
  • Automann Number:MH1908
  • Ford Number:COAZ5791A
  • MPN: HB-831
SKU HB-902
$2.93
Leaf Spring Bushing | Harris | Chevy/GM

Harris style rubber leaf spring bushing HB-902 is designed for Chevy and GMC automotive leaf springs...   Details

8 In Stock
  • Leaf Spring Bushing Type:Harris
  • A-Outer Diameter:1.563 inch
  • B-Length:1.375 inch
  • D-Inner Diameter:0.563 inch
  • C-Length:1.813 inch
  • Vehicle Application:Chevrolet, Pontiac
  • E-Outer Diameter:1.875 inch
  • Note:For 2-1/2 inch wide spring
  • Automann Number:MH2050
  • Chevrolet / GM Number:3908370
  • MPN: HB-902

Harris Style Leaf Spring Bushings Reviews

Out of 15 reviews, the average customer rating for Harris Style Leaf Spring Bushings: 4.9 out of 5.

harris leaf spring bushing hb-387 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-387 Rating: 5 Stars

I Will Use MTS For All My Spring And Bushing Needs.

Bought bushings for hot rod custom set-up, thru no fault of MTS the bushings where mislabeled from the mfg. They made it right and did it very fast, had the correct bushings in 2 days and they didn't ask for the mislabeled bushings back. These guys are solid.

Read the Review

harris leaf spring bushing hb-402 reviewer
Harris Style Leaf Spring Bushings - Multiple Heavy Duty Manufacturers HB-402 Rating: 5 Stars

I Would Purchase Again

Well just to let you know this was used to replace alternator bushings on a 1987 Plymouth horizon. I could not find the parts anyplace. Your bushing was a bit long on I think the B dimension but you did make a shorter one. This rubber bushing and my old steel flange sleeves worked perfect. I c...

Read the Review

harris leaf spring bushing hb-902 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-902 Rating: 5 Stars

A+++++++++++++

ordered 8 bushings, was sent 1 incorrect bushing, they were very quick to send replacement to correct their mistake, A++++ company, will definately buy from again in the future

Read the Review

harris leaf spring bushing hb-396 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-396 Rating: 5 Stars

Commissioning My Sailboat

This is not a typical review for a leaf spring bushing. I am converting my sailboat rig from a free floating boom crutch to a fixed gooseneck. I found a gooseneck that fit my mast, but the gooseneck had a pin that was designed to mate with a rubber bushing inserted into the end of the boom....

Read the Review

harris leaf spring bushing hb-850 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-850 Rating: 5 Stars

Would Buy Again

Item as advertised, Perfect fit, quality product

Read the Review

harris leaf spring bushing hb-534 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-534 Rating: 5 Stars

Lesf Spring Bushings

Perfect! High quality product and fast shipping! 5 stars!!

Read the Review

harris leaf spring bushing hb-831 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-831 Rating: 5 Stars

Harris Leaf Spring Bushing - Type 1

these were exactly what I needed and they were easy to install.

Read the Review

harris leaf spring bushing - type 1 hb-1004 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-1004 Rating: 5 Stars

Required Part

Used in replacement of leaf spring. No problems. Good price.

Read the Review

harris leaf spring bushing - type 1 hb-880 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-880 Rating: 5 Stars

Replacement Bushings, For 1960 Oldsmobile

Great replacements for the stock bushings, buy a set to go with your new springs as the cost is very reasonable.

Read the Review

harris leaf spring bushing hb-862 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-862 Rating: 5 Stars

Perfect Replacement For 60 Year Old Bushings

Great replacement for wore out bushings

Read the Review

harris leaf spring bushing hb-862 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-862 Rating: 4 Stars

Did The Job

I was looking for a bushing that I could use in the leaf spring hanger bracket of a 1987 Ford Ranger (2WD) without replacing the entire hanger bracket. Two of these did a reasonable job, with some minor modifications.

Read the Review

harris leaf spring bushing hb-891 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-891 Rating: 5 Stars

Perfect Part

Product was the correct size and shape. Fit right into place.

Read the Review

harris leaf spring bushing hb-389 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-389 Rating: 4 Stars

Good Product

Rebuilding a 1954 International pickup with Ford springs.

Read the Review

harris leaf spring bushing hb-760 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-760 Rating: 5 Stars

Exact Fit Of Hard To Find Piece.

These were exact fit for My 1939 LaSalle

Read the Review

harris leaf spring bushing hb-997 reviewer
Harris Style Leaf Spring Bushings - Dayton HB-997 Rating: 5 Stars

The Cobra Project

Good quality bushings at a great price.

Read the Review
