Mile Marker H Series Hydraulic Winch

Mile Marker H Series Hydraulic Winch

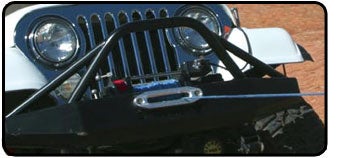

The H-Series Hydraulic Winch can be mounted to the front or rear of the vehicle as a permanent or detacheable recovery system. This system is independant from it's solenoid control pack to give more freedom in mounting options and vehicle applications.

Showing 1 - 4 of 4 Products
v
[Collapse/Expand]
Filters:

You can filter this list, by selecting any of these options:


  1. 9,000 lbs.
  2. 10,500 lbs.
  3. 12,000 lbs.
  4. 18,000 lbs.
  1. 3/8 inch x 100 foot (nominal 14,400 lbs.)
  2. 3/8 inch x 100 foot (14,400 nominal)
  3. Recommended 0.5 inch Galvanized Aircraft Cable Nominal Breaking Strength = 26,600 lbs.
  1. 11.9 C.I Hydraulic
  2. 14 C.I. Hydraulic
  3. 17.9 C.I. Hydraulic
  4. 19.5 C.I. Hydraulic
  1. 18:1 Low Gear, 6:1 High Gear
  2. 6:1
  1. Planetary
  2. Planetary, Hardened Steel Gear
  1. 2.5 inch x 9 inch
  2. 4.0 inch X 10 inch - Short Drum
  1. 10 inch x 4.5 inch (4 bolts, 3/8 inch)
  2. 11.48 inch x 8 inch - Long Drum (8 bolts, 5/8 inch-11)
  3. 4.5 inch x 10 inch (4 bolts, 3/8 inch)
  1. Illuminated Joystick Remote, 12 foot
Part#: MLM70-50050C

Availability: Typically ships in 2 to 3 business days.
Your Price $1,198.70
List Price $1,598.27
You Save $399.57 - 25%
The Mile Marker H Series 10,500 lbs. hydraulic winch can be mounted to the front or rear of the vehicle. This system is independent from its solenoid control valve to give more freedom in mounting options and vehicle application.
  • Capacity:10,500 lbs.
  • Winch Type:Hydraulic
  • Specs: 70-50050C Hydraulic Winch Specs.
  • Gear Train:Planetary
  • Gear Ratio:6:1
  • Motor:17.9 C.I. Hydraulic
  • Control Pendant:Illuminated Joystick Remote, 12 foot
  • Cable:3/8 inch x 100 foot (14,400 nominal)
  • Drum Size:2.5 inch x 9 inch
  • Weight:93 lbs.
  • Bolt Pattern:10 inch x 4.5 inch (4 bolts, 3/8 inch)
  • Instructions:70-50050C Hydraulic Winch Installation Guide.
  • Note:A Mile Marker 34 series valve adapter kit is required to adapt a Mile Marker H-series hydraulic winch to a vehicle power steering pump.
  • Manufactured In:United States
  • Manufacturers Part Number:70-50050C


Part#: MLM70-50080C

Availability: Typically ships in 2 to 3 business days.
Your Price $1,079.99
List Price $1,439.98
You Save $359.99 - 25%
The Mile Marker H Series 9,000 lbs. hydraulic winch can be mounted to the front or rear of the vehicle. This system is independent from its solenoid control valve to give more freedom in mounting options and vehicle application.
  • Capacity:9,000 lbs.
  • Winch Type:Hydraulic
  • Specs: 70-50080C Hydraulic Winch Specs.
  • Gear Train:Planetary
  • Gear Ratio:6:1
  • Motor:14 C.I. Hydraulic
  • Control Pendant:Illuminated Joystick Remote, 12 foot
  • Cable:3/8 inch x 100 foot (14,400 nominal)
  • Drum Size:2.5 inch x 9 inch
  • Weight:93 lbs.
  • Bolt Pattern:10 inch x 4.5 inch (4 bolts, 3/8 inch)
  • Instructions:70-50080C Hydraulic Winch Installation Guide.
  • Note:A Mile Marker 34 series valve adapter kit is required to adapt a Mile Marker H-series hydraulic winch to a vehicle power steering pump.
  • Manufactured In:United States
  • Manufacturers Part Number:70-50080C


Part#: MLM70-52000C

Availability: Typically ships in 2 to 3 business days.
Your Price $1,268.48
List Price $1,691.31
You Save $422.83 - 25%
The Mile Marker H Series 12,000 lbs. hydraulic winch can be mounted to the front or rear of the vehicle. This system is independent from its solenoid control valve to give more freedom in mounting options and vehicle application.
  • Capacity:12,000 lbs.
  • Winch Type:Hydraulic
  • Specs: 70-52000C Hydraulic Winch Specs.
  • Gear Train:Planetary
  • Gear Ratio:6:1
  • Motor:19.5 C.I. Hydraulic
  • Control Pendant:Illuminated Joystick Remote, 12 foot
  • Cable:3/8 inch x 100 foot (nominal 14,400 lbs.)
  • Drum Size:2.5 inch x 9 inch
  • Weight:101 lbs.
  • Bolt Pattern:4.5 inch x 10 inch (4 bolts, 3/8 inch)
  • Instructions: 70-52000C Hydraulic Winch Installation Guide.
  • Note:A Mile Marker 34 series valve adapter kit is required to adapt a Mile Marker H-series hydraulic winch to a vehicle power steering pump.
  • Manufactured In:United States
  • Manufacturers Part Number:70-52000C


Part#: MLM70-58000C

Availability: Typically ships in 2 to 3 business days.
Your Price $6,299.99
List Price $8,399.99
You Save $2,100.00 - 25%
The Mile Marker H18K 18,000 lbs. hydraulic winch is designed for heavy duty commercial, wrecker and military applications. Requiring a hydraulic flow of 4 GPM at 1500 PSI, this winch can be powered by either stock power steering pumps or PTO systems.
  • Capacity:18,000 lbs.
  • Winch Type:Hydraulic
  • Specs: 70-50050C Hydraulic Winch Specs.
  • Gear Train:Planetary, Hardened Steel Gear
  • Gear Ratio:18:1 Low Gear, 6:1 High Gear
  • Motor:11.9 C.I Hydraulic
  • Cable:Recommended 0.5 inch Galvanized Aircraft Cable Nominal Breaking Strength = 26,600 lbs.
  • Drum Size:4.0 inch X 10 inch - Short Drum
  • Weight:157 lbs. with out cable - Long Drum
  • Bolt Pattern:11.48 inch x 8 inch - Long Drum (8 bolts, 5/8 inch-11)
  • Note:A Mile Marker 34 series valve adapter kit is required to adapt a Mile Marker H-series hydraulic winch to a vehicle power steering pump. (Short Drum Available Upon Special Order)
  • Manufactured In:United States
  • Manufacturers Part Number:70-58000C


The Mile Marker H Series Hydraulic Winch can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system. This system is independent from its solenoid control valve to give more freedom in mounting options and vehicle application. The installation of one of the H Series models (H9000, H10500, and H12000) requires a vehicle specific 34-Series valve adapter kit.

Features of the Mile Marker H Series Hydraulic Winch

  • Permanent or Detachable Recovery System
  • Remote Solenoid Valve
  • Submersible
  • 100 % Duty Cycle
  • Power Steering Pump Powered
