Product Review: Hellwig Big Wig Sway Bar

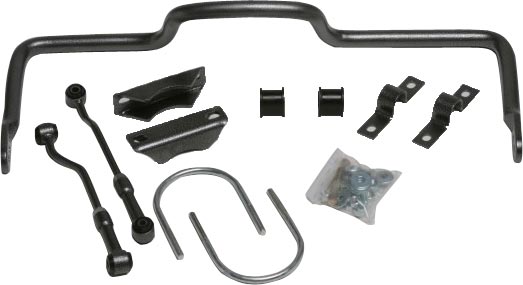

Hellwig Big WigHave you ever noticed that your truck is leaning hard to the outside of a turn when you are using your slip on truck camper or while hauling a top heavy load? Do you feel the loss of traction as that weight shifts? The answer to problems like these could be the Big Wig Sway Bar by Hellwig.

Issues like excessive body roll and loss of traction are caused by the extra weight in the back of your truck. Adding a substantial amount of weight to your truck can significantly change the way it rides, especially around corners. The key to this change in ride quality is the truck’s center of gravity. Adding a camper to the bed of your truck can add a few thousand pounds to its weight, even with the camper’s weight shifted as forward as possible, this can dramatically alter the vehicle’s center of gravity.

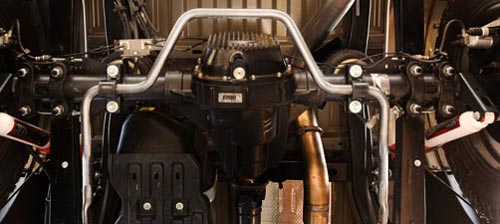

Hellwig Big WigThe change in ride quality is a result of the added weight being placed above the center of gravity. Normally a truck has its center of gravity towards the middle of the vehicle which results in a smooth even ride while taking a turn. Even under unloaded conditions, the weight of your truck shifts to the outside tires as the weight pivots on the center of gravity, much like a lever pivots on its fulcrum. Adding a sway bar, such as the Hellwig Big Wig, can help keep that weight from shifting, giving you better control around turns.

The added weight of a heavy road, like that of a camper, tends to create a combined center of gravity above and to the rear of its previous location. Adding weight to the rear of a truck essentially moves the fulcrum on the lever upward and backward. This change in ride quality occurs because the closer the force on a lever is to the fulcrum, the less force is needed to offset the weight on the opposite side. In other words, the higher the center of gravity is on your truck and camper the less force is needed before it experiences body roll during a turn. Take control of your truck’s center of gravity with the Big Wig and take corners with ease.

Hellwig Big Wig

Body roll, aside from being uncomfortable to endure, can have some serious consequences. By shifting the weight to one side of the vehicle, weight is being shifted off of the other side. This can result in a loss in traction on that side’s tires. Hellwig Big Wig sway bars combat this loss of traction by increasing the rigidity of your truck’s body, thereby allowing for less body roll around turns.

The Hellwig Big Wig is able to reduce the body roll of a truck more than a standard sway bar because it specifically designed for vehicles with a high center of gravity, such as truck campers or other heavy hauling pick-up trucks. The Big Wig can provide more than a 20% increase in stability because it has a wider diameter and heavy duty hardware. This extra width adds much to the roll stiffness of your suspension, creating a smoother more comfortable ride, even when hauling a few thousand extra pounds in the form of a truck camper.

Hellwig Big Wig sway bars are made in the USA by Hellwig Products and are guaranteed for the life of your vehicle. Buy a Big Wig sway bar and take control of your heavy duty or super duty pickup and truck camper.

Hellwig Big Wig Rear Sway Bars for Ford Trucks

1999 – 2010 Ford F-250 & F-350 SD
  • Hellwig Part #: 7268
2011 – 2012 Ford F-250 & F-350 SD
  • Hellwig Part #: 7271

Hellwig Big Wig Rear Sway Bars for Dodge Trucks

2003 - 2008 Dodge 2500 & 3500 with 5.9 Diesel
  • Hellwig Part #: 7265
2007 - 2009 Dodge 2500 & 3500 with 6.7 Diesel
  • Hellwig Part #: 7266

Hellwig Big Wig Rear Sway Bars for Chevy and GM Trucks

2001 – 2006 Chevy/GM 2500 & 3500 HD
  • Hellwig Part #: 7269

Buy Hellwig Sway Bars online at TruckSpring.com or call 1-800-358-4751 to speak with a suspension specialist. Michigan Truck Spring has been installing Hellwig sway bars at thier shop for years and is an authorized warehouse distributor for Hellwig sway bars.
