Brake chambers are used on heavy-duty truck air brake systems to convert energy from compressed air into force used to apply the brakes. We offer high quality direct replacements and repair parts for all types of suspensions. All our replacement parts used to service brake systems are manufactured to meet or exceed O.E.M. specifications

Found 76 Matching Products
Filter the list of Matching Products by selecting any of these options:
  1. Brake Chamber
  2. Service Chambers
  3. Brake Chamber Components
  1. Diaphragms
  2. Clevis
  3. Clevis Pins
  1. Air Disc Brake Chambers
  1. 9
  2. 12
  3. 16
  1. 18
  2. 20
  3. 2024
  1. 24
  2. 2424
  3. 2430
  1. 30
  2. 3030
  3. 3036
  1. 36
  1. 1.19 inch
  1. 1-1/4 inch
  1. 1-3/8 inch
  1. 1.718 inch
  1. 1-3/4 Inch
  1. 1-3/4 inch - 1-9/16 inch
  1. 1/4 inch
  2. 1/2 inch
  1. 1/2 inch - 1/4 inch
  2. 5/8 inch
  1. 5.000 inches
  2. 5.500 inches
  1. 6.160 inches
  2. 6.550 inches
  1. 7.000 inches
  2. 7.875 inches
  1. 1.175 inches
  2. 1.295 inches
  1. 1.315 inches
  2. 1.505 inches
  1. 1.605 inches
  2. 1.905 inches
  1. 2.050 inches
  1. Proline HD
  2. Multiple Heavy Duty Manufacturers
  1. Automann
  2. SORL
  1. Haldex
  2. Sirco
  1. Dayton
v
SKU PL008
$4.29

Proline PL009 caging bolt assembly includes T-bolt, washer and nut. Replaces Automann 179.4019, Bendix 800921, Euclid E11988, E9114 and Haldex RT1 .   Details

20+ In Stock as of September 25, 2020 19:58 PM EST.
  • Automann Number:179.4019
  • Bendix Number:800921
  • Euclid Number:E11988, E9114
  • Haldex Number:RT1
  • MPN: PL008
SKU D09
$2.47

Type 9 brake chamber diaphragm replacement. Replaces 179.DT9, 234433, E8888, DP09, 2797B1042 and N200316.   Details

4 In Stock as of September 25, 2020 8:01 PM EST.
  • Brake Chamber Type:9
  • Diameter:5.000 inches
  • Height:1.175 inches
  • Automann Number:179.DT9
  • Bendix Number:234433
  • Euclid Number:E8888
  • Haldex Number:DP09
  • Meritor Number:2797B1042
  • Midland Number:N200316
  • MPN: PL-D-9
SKU 30DC
$0.95

Proline 30DC brake chamber dust cap is designed to replace the worn or damaged cap on the bottom of the chamber.   Details

10 In Stock as of September 25, 2020 7:58 PM EST.
  • MPN: 30DC
SKU M3030
$34.50

Type 30/30 combination sealed spring brake chamber. Standard stroke, 2.50 inch stroke length and two 3/8 inch NPT ports.   Details

20+ In Stock as of September 25, 2020 20:20 PM EST.
  • Brake Chamber Type:3030
  • Stroke:Standard
  • Stroke Length:2.50 inches
  • Port Thread:2xNPT3/8
  • Bolt Thread:5/8-11UNC
  • Push Rod Length:11.75 inches
  • Cross References:179.SB3030S, K049898, NT3030STD120, NT3030STD-120, 3030TS, FRL 42040948, OTR OTR3030SBLS, V42 3230051, EM30300001, 3230051X, PLCTS-3030, K049898
  • Manufacturers Part Number:M3030
  • MPN: M3030
SKU CP134
$5.95

Greasable clevis pin CP134, 1/2 inch diameter x 1-3/4 inches long with cotter key.   Details

20+ In Stock as of September 25, 2020 20:11 PM EST.
  • Diameter:1/2 inch
  • Length:1-3/4 inch
  • MPN: CP134
SKU CPS114
$5.95

Greasable clevis pin CPS114, 1/4 inch diameter x 1-1/4 inches long with cotter key.   Details

17 In Stock as of September 25, 2020 8:11 PM EST.
  • Diameter:1/4 inch
  • Length:1-1/4 inch
  • MPN: CPS114
SKU SC16
$30.83

Type 16 brake service chamber. 3/8-18 NPTF inlet ports, 2.250 inch service stroke. 1555 service forces at 100 psi.   Details

2 In Stock as of September 25, 2020 7:59 PM EST.
  • Brake Chamber Type:16
  • Stroke:2.25 inches
  • Inlet Port:3/8-18 NPTF
  • Cross References:BSC-16
  • Automann Number:179.SC16
  • Bendix Number:288799, 288799N
  • MPN: SC16
SKU CF1
$4.95

Clevis kit, 1/2 inch-20 threads, 1/2 inch offset. Includes 1/2 inch pin. Replaces Automann 179.   Details

18 In Stock as of September 25, 2020 8:00 PM EST.
  • Automann Number:179.YK5810
  • Bendix Number:205948N
  • Euclid Number:E8896
  • Haldex Number:11M018-8, KN36490
  • Holland (Neway) Number:9999048
  • MPN: CF1
SKU SC12
$21.50

Type 12 Service Chamber. 1.75 inch stroke, 3/8 x 18 NPTF air port threads and 1/2 x 20 UNF push rod threads. Replaces 179.   Details

3 In Stock as of September 25, 2020 8:31 PM EST.
  • Brake Chamber Type:12
  • Stroke:1.75 inches
  • Stud Spacing:3.00" - 76 mm
  • Stud Type:7/16 x 14 UNC Grade 5
  • Stud Length:1.12" - 28 mm
  • Inlet Port:3/8-18 NPTF
  • Cross References:05-112, 1200SC, 5007117N, 800822
  • Automann Number:179.SC12
  • MPN: SC12
SKU D16
$3.15

Type 12 brake chamber diaphragm replacement. Replaces 179.DT16, 234189, 802487, E8890, DP16, 2797B106, 2797D1044, N20151, 15116 and 62011.   Details

Availability: Typically ships in 5 to 7 business days.
  • Brake Chamber Type:16
  • Diameter:6.160 inches
  • Height:1.295 inches
  • Automann Number:179.DT16
  • Bendix Number:234189, 802487
  • Euclid Number:E8890
  • Haldex Number:DP16
  • Meritor Number:2797B106, 2797D1044
  • Midland Number:N20151
  • Tectran Number:15116, 62011
  • MPN: PL-D-16
SKU CP138
$5.95

Greasable clevis pin CP138, 1/2 inch diameter x 1-3/8 inches long with cotter key.   Details

20+ In Stock as of September 25, 2020 20:11 PM EST.
  • Diameter:1/2 inch
  • Length:1-3/8 inch
  • MPN: CP138
SKU D12
$3.15

Type 12 brake chamber diaphragm replacement. Replaces 179.DT12, 234226, 802486, E8889, DP12, 2797C1043, 2797D56, N20168, 15112.   Details

19 In Stock as of September 25, 2020 8:01 PM EST.
  • Brake Chamber Type:12
  • Diameter:5.500 inches
  • Height:1.295 inches
  • Automann Number:179.DT12
  • Bendix Number:234226, 802486
  • Euclid Number:E8889
  • Haldex Number:DP12
  • Meritor Number:2797C1043, 2797D56
  • Midland Number:N20168
  • Tectran Number:15112
  • MPN: PL-D-12

What are brake chambers?

Spring brakes are a service chamber with an additional chamber attached that gives it the ability to apply a parking brake when air is purposefully removed from the rear section or an emergency brake when the air brake system fails, and traditional braking is not possible. These two sections operate independently from each other until air is removed from the rear section and the large compressed coil spring applies the brakes. There is a third less common type of brake chamber called a Rotochamber which is mostly found on off-highway equipment and some busses.

These have a very long travel and come in many application forces. The internal components are different from a traditional brake chamber. Brake chambers are a device that allows compressed air to be converted into mechanical force. They are used on the air brake system of heavy-duty vehicles. Brake chambers are known by many terms including air brake chambers, maxi chambers, brake cans, and spring brakes. The components of a brake chamber are housed in a round canister sealed by a clamp. Brake chambers come in two main types, service chambers and spring brakes. Service chambers apply the brakes when air is applied to the chamber and return via an internal spring to a released position when the air is removed.

This video gives a detailed overview of the various components of service chambers and spring brakes. We identify long stroke, standard stoke, and different chamber types. We also talk about how they work as well as how to replace piggyback assemblies. Understanding and Identifying Brake Chambers

What are Service Chambers?

Service chambers are brake chambers with a single section whose only purpose is to apply the brakes when air is supplied to the chamber. When air is released, the chamber will return to the seated position. Service chambers are available in types 6, 9, 12, 16, 20, 24, 30, and 36. The type refers to the effective area in square inches that the air works against, a type 12 has 12 square inches of surface area and a type 30 has 30 square inches of service area etc. This means as the type of service chamber increases the diameter grows and so does its potential output for braking pressure. Service chambers are normally found on steer axle applications and they can be completely rebuilt if there is no damage to the two sections of the cannister. By removing the clamp ring around the service chamber, the internal components of the chamber can be replaced if needed.

What is inside a Service Chamber?

Inside of a service chamber there are only 3 components:

Rubber Diaphragm
Flexible rubber disc that traps incoming air behind it. This presses the push plate/ push rod forward applying the brakes.
Push Plate/Push Rod Assembly
Metal plate welded to a threaded rod. This transfers the force of the air from the diaphragm to a yoke or clevis allowing application of your brakes through your slack adjusters and brake camshaft / S-Cam
Return Spring
Applies pressure to the push plate and diaphragm ensuring that the brake chamber returns to a seated position when the air is released from the service chamber.

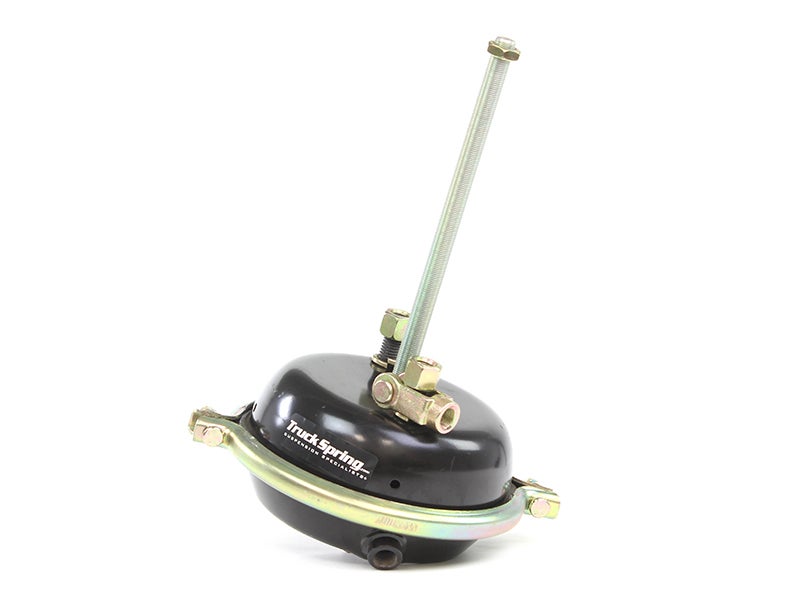

brake service chamber

What are Spring Brakes?

Spring brakes are brake chambers that include a second section that houses a powerful spring. This spring acts as a parking brake or an emergency brake when air pressure is not applied to that section of the brake chamber. The two sections of a spring brake act independently of each other they have their own air supplies and diaphragms. Under normal conditions, they will not interact with each other. These are found on trailer axles and drive axles only due to their automatic ability to apply the brakes when air is lost. This may cause a loss of control if they installed on the steer axle of the truck. The parking spring section of the brake chamber is not serviceable and any attempt to open this portion of the brake chamber may result in death.

What is inside a Spring Brake?

Spring brakes feature two sections, the first houses the service chamber. The internal components of the service section are identical to a non-spring brake service chamber and they serve the same functions.

The second section is the parking brake chamber. The parking brake chamber is also known as a piggy-back, this portion of the spring brake is not serviceable, and it is replaced as a pre-built unit. The piggy-back features a sealed clamp that is not meant for removal. When replacing a piggy-back a caging bolt or t-bolt is used to mechanically restrain the large coil spring. Once a spring brake is caged it is safe for removal and replacement. The parking/ emergency spring can have upwards of 2000 LBS of force. Any attempt to open the piggy-back / spring brake may result in injury or death.

Inside of the spring brake there are four components, none of these components can be serviced.

Diaphragm
Rubber disc that converts air pressure to mechanical force. 60 PSI is the minimum required for the diaphragm to compress the large coil spring and release the brakes.
Parking Spring
This is a large coil spring that applies the brakes when air is released from the parking chamber. This may be on purpose when parking the truck and trailer and pulling the park button on the dash or this may be an emergency application when air is unexpectedly lost during vehicle operation. The parking brake moves a piston which forces the service chamber portion to apply the brakes.
Piston Assembly
A machined shaft that passes through the body of the parking brake assembly to the service portion. The large coil spring pushes this shaft forward and applies the service chamber.
Return spring
Ensures that the piston assembly returns to a seated position when air is applied to the parking chamber, compressing the large coil spring.

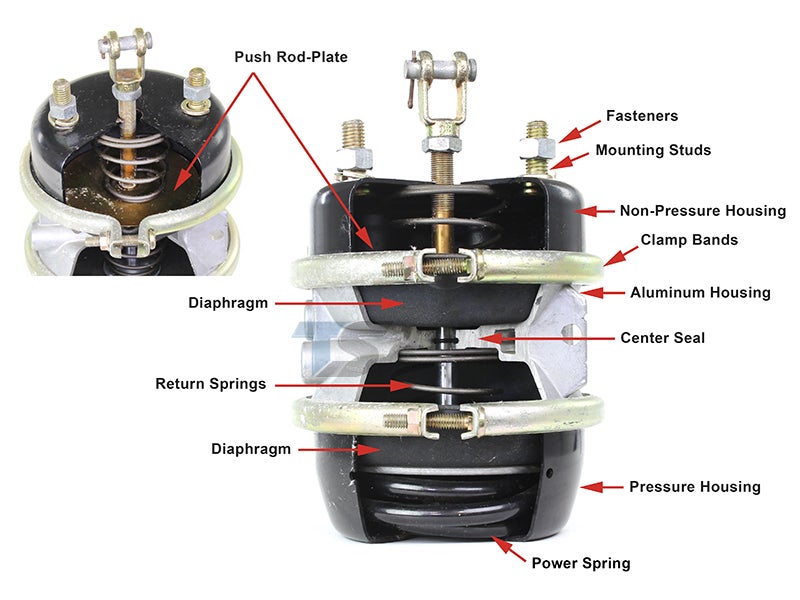

cut-away photo of spring brake chamber

Caging Bolts

Spring brakes will have a location cast into the housing to store a caging bolt. The caging bolts or t-bolts are very important for when a chamber needs to be serviced or a vehicle with parking brakes needs to be towed. The caging bolt is inserted into a hole in the parking chamber and a ¼ - ½ turn locks them into place. A washer and nut are threaded onto the bolt and tightened. This mechanically retrains the parking spring releasing the brake without the use of air. This allows a broken-down vehicle to be towed or if a parking brake has failed it will allow the piggy-back portion to be safely removed. Every new spring brake chamber includes a new caging bolt and any damaged or worn caging bolts should be immediately discarded and replaced. A caging bolt is crucial to safely working on spring brake chambers.

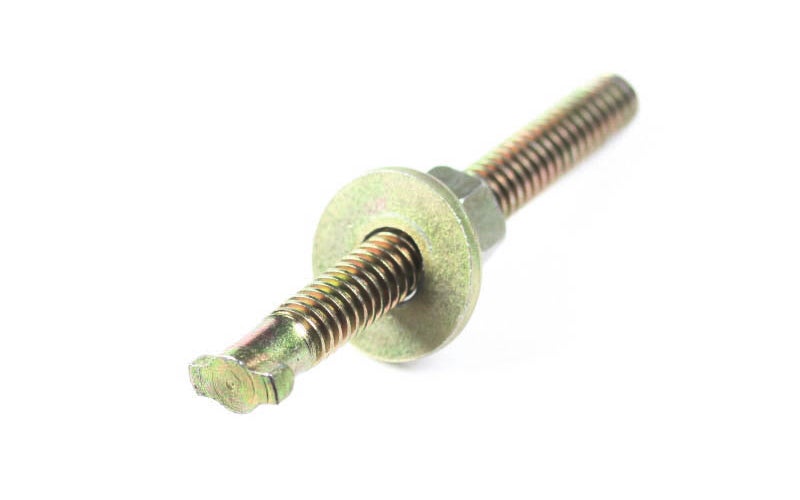

caging bolt for spring brake

Long Stroke Chambers

Service chambers and spring brakes will come in a standard stroke and a long stroke variant. The long stroke variants can have a stroke of 3" or more where a standard style will be 2.5". Long stroke chambers must be used on a system designed for them. They can add an extra margin for safety ensuring full brake application on a system that may be slightly out of adjustment or they may be used to eliminate brake drag on some systems, this has made them increasingly popular on newer trucks and trailers.

There are a few ways to identify a long-stroke brake chamber.

  • A part number or serial number on the chamber will contain "LS"
  • The air inlet or inlets will have a square boss
  • Cast in instructions such as, "USE 3-INCH STROKE DIAPHRAGM ONLY"
  • Trapezoidal shaped tag with stroke information

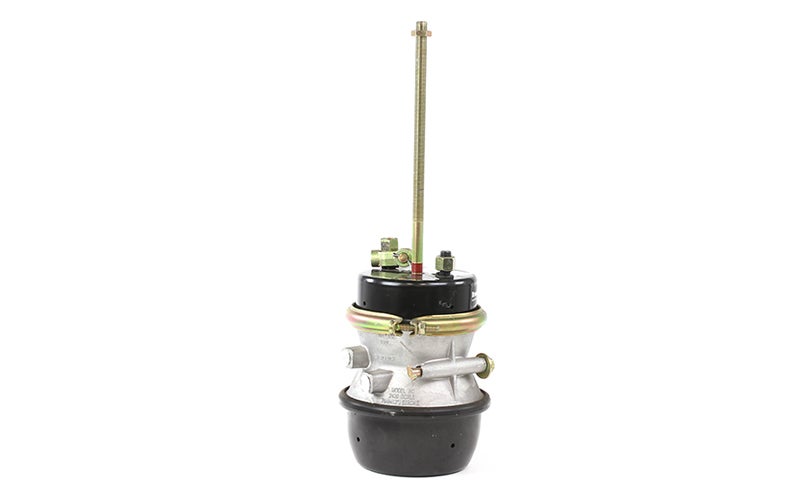

long stroke brake chamber

Brake Chamber Sizes / Types

Both service chambers and spring brakes come in a variety of standardized sizes. Because they are standardized, replacing chambers with the same type will ensure the correct fit of all mounting hardware. Service chambers come in a variety from type 6 to type 36 and spring brakes from 24/24 to 36/36. The type number relates to the effective area of the diaphragm in the chamber which when multiplied by the air pressure applied to give you the force that the brake chamber is capable of.

Service chambers will be identified simply by their type, for example, Type 24. This gives you the effective size and sizing and location for the mounting hardware.

Spring brake chambers will be identified by a double number, 30/30 being the most common with 24/30 and 30/36 being other examples. The double number identifies the size of the two separate chambers. The first number identifies the service brake portion and the second number identifies the parking and emergency portion. Most commonly chambers will match e.g. 30/30 and 24/24 but mixed chambers are also available e.g. 20/24 and 24/30. If no markings or tags are present on a brake chamber they can be identified using measurements.

How do you identify brake chambers by measurement?

Measuring the diameter of a brake chamber is a reliable way to identify the type. A service chamber will need one measurement taken across the inside of clamp ring to identify the type while a spring brake will take two measurements across the inside of both clamp rings to identify the service section and the parking section. Below you will find a chart with the measurements and their corresponding types.

Type Number Outside Diameter
6 4-1/2"
9 5-1/4"
12 5-11/16"
16 6-3/8"
20 6-25/32"
24 7-7/32"
30 8-3/32"
36 9-1/16"
