SKU 464.225
$106.95

Meritor Cross Tube 464.225. 58.12 inches long x 1-1/8 inch inner diameter x 1.75 inch outer diameter. Replaces Meritor A3102V3454 and A-3102-V-3454   Details

8 In Stock as of November 15, 2020 6:34 PM EST.
  • Application:Meritor
  • Inside Diameter:1-1/8 inch -12
  • Outside Diameter:1.750 inches
  • Length:58.120 inches
  • Automann Number:464.225
  • Dayton Number:347-314
  • Flagg Number:CT301M
  • Meritor Number:A3102V3454, A-3102-V-3454
  • UPC: 889626072208
  • MPN: 464.225
SKU 463.DS9904
$179.95

Cross tube assembly 463.DS9904 for International, Ford and Chevy/GM applications. Includes ES2237L and ES2238R tie rod ends.   Details

1 In Stock as of November 15, 2020 6:35 PM EST.
  • Application:International
  • Application:Ford
  • Application:Chevrolet/GM
  • Inside Diameter:1-1/4 inches -12
  • Center-To-Center:53.562 inches
  • Chevrolet / GM Number:88936104
  • Ford Number:BC403304AA, BC40-3304-AA, BC4O3304AA, BC4O-3304-AA, BC4Z3304A, BC4Z-3304-A
  • International Number:2602538C91
  • Meritor Number:A23102S4543, A2-3102-S-4543
  • UPC: 889626067884
  • MPN: 463.DS9904
SKU 464.204
$94.95

Cross Tube 464.204 for Hendrickson Turner Lift Axles. 1-750 inch outer diameter x 59.370 inch length. Replaces Hendrickson numbers 002915 and R002915.   Details

10 In Stock as of November 15, 2020 6:33 PM EST.
  • Application:Ford
  • Application:International
  • Application:Hendrickson
  • Application:Volvo/White
  • Inside Diameter:1-1/8 inch -12
  • Outside Diameter:1.750 inches
  • Length:59.370 inches
  • Automann Number:464.204
  • Dayton Number:347-318
  • Eaton Number:1006144
  • Euclid Number:E9957
  • Ford Number:D0HZ3281A
  • Hendrickson Number:002915, R002915
  • International Number:1697445C91
  • Meritor Number:A3102F4348, A3102K4379, A3102N3472, R250398
  • TRW Number:DS1379S
  • Volvo / White Number:85105932
  • UPC: 889626072116
  • MPN: 464.204
SKU 464.206
$213.65

Meritor Cross Tube 464.206 is used in International, Mack and Western Star suspensions. 49.0 inches long, 1-7/8 inch inner diameter and 2.   Details

2 In Stock as of November 15, 2020 6:34 PM EST.
  • Application:International
  • Application:Mack
  • Application:Western Star
  • Inside Diameter:1-7/8 inch -12
  • Outside Diameter:2.500 inches
  • Length:49.00 inches
  • Automann Number:464.206
  • Dana Number:220TR120
  • Eaton Number:817020
  • International Number:1668478C91, 1680772C91
  • Mack Number:7QH46
  • Meritor Number:A3102U4233
  • TRW Number:L30RT0008A11
  • Western Star Number:370044425
  • UPC: 889626072963
  • MPN: 464.206
SKU 464.208
$106.95

Cross Tube 464.208 for Spicer tie rod applications. 60.50 inches long, 1-1/8 inch inner diameter and 2.00 inch outer diameter.   Details

5 In Stock as of November 15, 2020 6:35 PM EST.
  • Application:Spicer
  • Inside Diameter:1-1/8 inch -12
  • Outside Diameter:2.000 inches
  • Length:60.50 inches
  • Automann Number:464.208
  • Dayton Number:347-207
  • Eaton Number:1006732
  • Flagg Number:CT100D
  • Spicer Number: 1006732
  • UPC: 889626073007
  • MPN: 464.208
SKU 464.213
$161.95

Freithgliner Cross Tube 464.213. 63.625 inches long, 1-1/8 inch inner diameter and 1.75 inch outer diameter.   Details

1 In Stock as of November 15, 2020 6:33 PM EST.
  • Application:Freightliner
  • Application:GM
  • Inside Diameter:1-1/8 inch -12
  • Outside Diameter:1.750 inches
  • Length:63.625 inches
  • Automann Number:464.213
  • BWP Number:88936009
  • Flagg Number:A6803304403 5LL, A-680-330-44-03 5LL
  • Hendrickson Number:A3102J4560, A-3102-J-4560, A3102J4534, A-3102-J-4534, A3102H4558, A-3102-H-4558
  • Volvo Number:Vehicles & Parts > Vehicle Parts & Accessories > Motor Vehicle Parts > Motor Vehicle Suspension Parts
  • UPC: 889626072765
  • MPN: 464.213
SKU 464.299
$111.25

Meritor Cross Tube 464.299. 62.00 inches long, 1-1/8 inch inner diameter and 1.65 inch outer diameter. Replaces Meritor number A3102A3459.   Details

Availability: Typically ships in 3 to 4 business days.
  • Application:Meritor
  • Inside Diameter:1-1/8 inch -12
  • Outside Diameter:1.650 inches
  • Length:62.000 inches
  • Automann Number:464.299
  • Dana Number:120TR134
  • Eaton Number:971087, 971089, 971091, 971444
  • Meritor Number:A3102A3459
  • TRW Number:L18RT1106A11
  • UPC: 889626072604
  • MPN: 464.299
SKU 464.9563
$132.95

Chevrolet/GM Cross Tube Shaft 464.9563. 40.875 inches long x 1-3/8 inch inner diameter x 1.813 inch outer diameter. For 2005-2009 C4500 trucks.   Details

Availability: Typically ships in 3 to 4 business days.
  • Application:Chevy
  • Application:GM
  • Inside Diameter:1-3/8 inch -16
  • Outside Diameter:1.813 inches
  • Length:40.875 inches
  • Automann Number:464.9563
  • UPC: 889626427985
  • MPN: 464.9563
SKU 347-109
$357.84

Dana Cross Tube 347-109. 49.00 inches long, 1-7/8 inch inner diameter and 2.50 inch outer diameter.   Details

1 In Stock as of November 15, 2020 6:33 PM EST.
  • Application:Dana
  • Application:International
  • Application:Mack
  • Application:Western Star
  • Inside Diameter:1-7/8 inch -12
  • Outside Diameter:2.500 inches
  • Length:49.000 inches
  • Automann Number:464.206
  • Dana Number:220TR120
  • Dayton Number:347-109
  • International Number:1668478C91, 1680772C91
  • Mack Number:7QH46
  • Meritor Number:A3102U4233, A-3102-U-4233
  • TRW Number:L30RT0008A11
  • Western Star Number:370044425
  • MPN: 347-109
SKU 44642-008L
$85.93

Hendrickson Cross Tube 44642-008L for 340 Series, RT/RS/SR series suspensions. 1-913 inch outer diameter x 44-7/8 inch length.   Details

2 In Stock as of November 15, 2020 6:33 PM EST.
  • Application:Ford
  • Application:International
  • Application:Hendrickson
  • Application:Volvo/White
  • Outside Diameter:1.935 inches
  • Length:44.875 inches
  • Automann Number:MCT4
  • Batco Number:09-5636
  • BWP Number:M-2017
  • Chevrolet / GM Number:2324962
  • Dallas Number:HE1158
  • Dayton Number:334-102
  • Euclid Number:E1840, E-1840
  • Flagg Number:CT1
  • Ford Number:E3HZ5884A, TWAA5884A
  • Gaumers Number:13160
  • Haldex Number:CS70551
  • Hendrickson Number:446428, 44642008, 44642008L, 44642-008, 44642-008L
  • International Number:124863R2
  • Leland Number:SC1273
  • Meritor Number:R301840
  • Volvo / White Number:350070001, 35007-0001
  • Westar Number:20-882
  • UPC: 889626151446
  • MPN: 44642-008L
SKU 44643-009L
$115.79

Ridewell Cross Tube for 380-520 Series, RD202S. 2-7/16 inch outer diameter x 44-7/8 inch length.   Details

4 In Stock as of November 15, 2020 6:35 PM EST.
  • Application:Ford
  • Application:International
  • Application:Hendrickson
  • Application:Volvo/White
  • Outside Diameter:2.437 inches
  • Length:44.875 inches
  • Automann Number:MCT6
  • Batco Number:09-5637, 09-7758
  • Dayton Number:334-113
  • Euclid Number:E1842, E-1842
  • Flagg Number:CT2
  • Ford Number:C8HS5884A
  • Gaumers Number:13150
  • GMC Number:2390348
  • Hendrickson Number:446439, 44643009, 44643-009, 44643009L, 44643-009L
  • International Number:124896R2, 124896R3, 966891R91
  • Meritor Number:R301842
  • Ridewell Number:9127564B000
  • Volvo Number:3082220, 878841
  • Volvo / White Number:350070002, 35007-0002
  • UPC: 889626151453
  • MPN: 44643-009L
SKU 463.DS5531
$570.95

Cross tube assembly for International 55/56/5900i severe service. Includes ES3030R and ES3031L tie rod ends with 5 inch drop.   Details

Availability: Typically ships in 3 to 4 business days.
  • Application:International
  • Application:Mack
  • Application:Chevrolet/GM
  • Inside Diameter:1-7/8 inches -12
  • Center-To-Center:65.620 - 67.200 inches
  • End to End:48.200 - 49.000 inches
  • Automann Number:463.DS5531
  • Dana Number:220TR1141
  • GMC Number:15579758
  • International Number:1681431C91
  • Mack Number:20577037, 7QH44M
  • Meritor Number:A13102U4233
  • TRW Number:L28VT5438A11
  • Volvo / White Number:370045024
  • Westport Number:1436400057
  • UPC: 889626067969
  • MPN: 463.DS5531

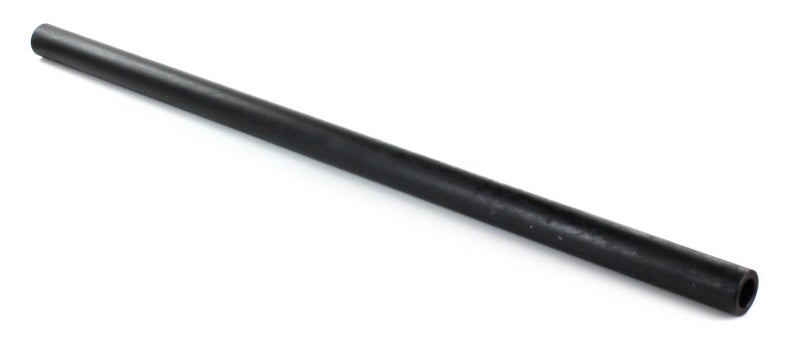

Cross tubes

Steering cross tubes are commonly referred to as tie rod tubes since they are the connection between the left and right-side tie rod end. Cross tubes are a crucial part of the steering system because they make the connection between the left and right wheels and allow for toe adjustments in the vehicle’s alignment.


What is Toe?

Toe is a measurement of how far the front or rear of the tires are from each other when the vehicle is traveling straight. If the front of the tires is closer together than the rear, it is called “toe-in” (think of it as your vehicle being pigeon-toed) and if the rear of the tires is closer together than the front it is called “toe-out”. The toe setting can have a major impact on how the tires wear and it will affect the steering feel of the vehicle. An incorrect toe setting may not immediately present a problem, but it will drastically reduce tire life.

How do Cross Tubes help adjust toe?

Tie rod ends are threaded with opposing threads so one end will have right-handed threads and one end will have left-handed threads. Cross tubes will share this opposed threading and after the tie rods ends are installed the tie rod cross tube can be turned to make fine adjustments to the distance between the tie rod ends. With the opposing thread design turning the bar in one direction will increase the total distance between the tie rod ends and turning the bar the other way will decrease this total distance. Once the correct setting has been made the clamps on the ends of the cross tube are tightened, locking the tie rods into place.

Why do cross tubes need replacement?

Cross tubes will need to be replaced in situations where the tube is bent or no longer able to be securely connected to the tie rod ends. If a tie rod tube becomes bent the toe will be changed and it may no longer be possible to correctly align the truck. If the truck has tight clearances, a bent bar may strike other steering or suspension components as the steering wheel is turned. Damage to the threads may prevent the tube and the tie rod ends form having a secure connection causing a dangerous situation.

  • Impact damage – Since the tie rod cross tube crosses the width of the vehicle it can be susceptible to impact damage from road debris. Also, if the vehicle is used off-road, the tie rod bar can become jammed against the ground or protruding rocks when crossing fields of job sites.
  • Towing – In some cases, when a vehicle is towed, an inexperienced recovery driver may connect chains to the tie rod bar to pull the vehicle or use the cross tube as a tie-down point when securing the vehicle. The cross tube is not designed for this and it will bend.
  • Thread Damage – Thread damage can occur when changing tie rod ends on an assembly that had been undisturbed for a long period of time. Original assemblies may have been built using no anti-seize compound and they may be stuck together by corrosion. Despite a great effort it may not always be possible to preserve a tie rod tube when changing tie rod ends.
  • Corrosion – Corrosion can slowly deteriorate a tie rod cross tube and weaken it. If the structural integrity on a cross tube is questionable it should be replaced.

How do I order the correct Cross Tube?

A cross tube can be ordered using an OEM part number as a cross-reference. Since the cross tubes are a very simple part one cross tube may cover many applications and years. If an OEM part number is not readily available there are several important dimensions on a tie rod cross tube that should be identical to the part that you are replacing and by taking a few simple measurements, you can ensure that you are choosing the correct replacement and that the new part will be easily installed.

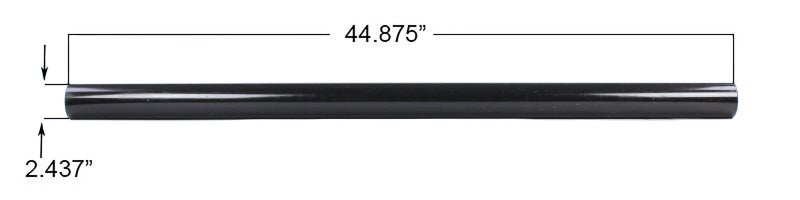

Length - Cross tube length is measured from end to end. The length of the tie rod tube is critical to the alignment of the vehicle and if the incorrect length is installed it may not be possible to correctly set the vehicle’s toe.

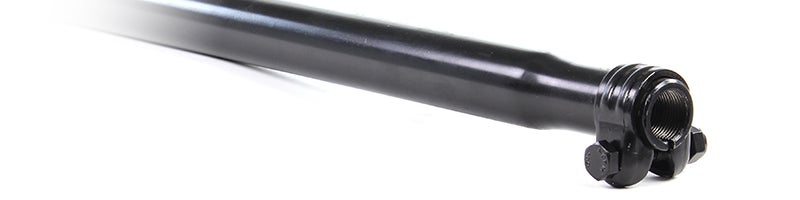

Internal diameter and thread - Cross tubes are internally threaded to accept the left and right-side tie rod ends. The thread is left-handed on one end and right-handed on the other to allow adjustments to the tie rod assembly length. The diameter must match that of the tie rod ends to the connection will be secure. The thread pitch will always be a fine thread, but the diameter of the tie rod ends, and the tie rod bar will change depending on the vehicle design.

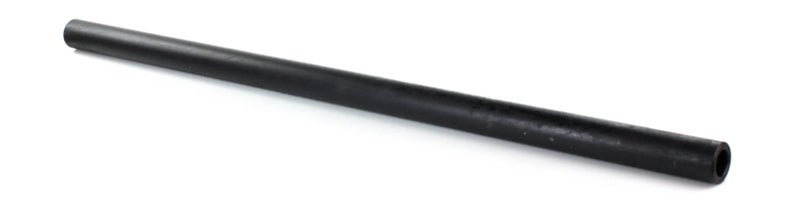

External diameter - The external diameter of the cross tube is important for clearances between the bar and other suspension components. The outer diameter of the bar is decided by what clearance is available on the vehicle and how much strength is needed in the bar.


Cross tube replacement is common during front end service due to multiple types of damage or wear. If you are in need of a replacement cross tube and you are having trouble finding the parts that you need please reach out to us at TruckSpring.com or call us at 1-800-358-4751 and we will be glad to help you find the parts that you need.
