Xtreme Cam Brake Camshaft

Xtreme Cams feature a unique cam bushing that runs the entire length of the camshaft. These brake camshaft & bushing systems are for extreme duty air brake systems.

Found 31 Matching Products
Filter the list of Matching Products by selecting any of these options:
  1. Trailer
  1. Left Hand
  1. Right Hand
  1. 28
  1. 1-1/16 inch
  1. 1.5 inch Continuous
  1. 11.0313 inch
  2. 16.313 inch
  3. 17.438 inch
  1. 17.4380 inch
  2. 20.432 inch
  3. 21.125 inch
  1. 21.1250 inch
  2. 22-3/8 inch
  3. 23.875 inch
  1. 23-7/8 inch
  2. 24.375 inch
  3. 24-3/8 inch
  1. 26.938 inch
  1. 1-7/8 inch
  1. 2 inch
  1. 2-1/8 inch
  1. 2.165 inch
  1. Fruehauf
  1. Hendx INTRAAX
  1. Multiple, Q+
v
11 inch Extreme Cam brake camshaft - Left Hand C1311A-L
SKU C1311A-L
$93.27

Brake Camshaft for multiple applications, trailer axle, Hendx INTRAAX, 28 Spline, 11.   Details

11 In Stock as of October 24, 2020 7:02 PM EST.
  • Axle Type:Trailer
  • Length:11.0313 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:2-1/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Application:Hendx INTRAAX
  • Cross References:E-11864, E-10899, E-11866
  • Bushing Cross References:E-11897
  • Rotation:Left Hand
  • MPN: C1311A-L
Extreme Cam Brake Camshaft | 22 inch | Left Hand C1122A-L
SKU C1122A-L
$150.99

For multiple applications, trailer axle, 28 Spline, 22-3/8 inch length, 1-1/16 inch head, 1-7/8 inch spider diameter, 1.   Details

Availability: Typically ships in 5 to 7 business days.
  • Axle Type:Trailer
  • Length:22-3/8 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:1-7/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-9089
  • Bushing Cross References:E-2089, E-2123, E-2088AHD, E-2287
  • Rotation:Left Hand
  • MPN: C1122A-L
Extreme Cam brake camshaft | 23 inch | Left Hand C1123A-L
SKU C1123A-L
$148.65

For multiple applications, trailer axle, 28 Spline, 23-7/8 inch length, 1-1/16 inch head, 1-7/8 inch spider diameter, 1.   Details

9 In Stock as of October 24, 2020 7:04 PM EST.
  • Axle Type:Trailer
  • Length:23-7/8 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:1-7/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-1095, E-3856
  • Bushing Cross References:E-2089, E-2123, E2088A-ID, E-2287
  • Rotation:Left Hand
  • MPN: C1123A-L
Extreme Cam Brake Camshaft | 23 inch | Right Hand C1123A-R
SKU C1123A-R
$148.65

For multiple applications, trailer axle, 28 Spline, 23-7/8 inch length, 1-1/16 inch head, 1-7/8 inch spider diameter, 1.   Details

7 In Stock as of October 24, 2020 7:04 PM EST.
  • Axle Type:Trailer
  • Length:23-7/8 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:1-7/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-1094, E-3857
  • Bushing Cross References:E-2089, E2123, E2088A-ID, E-2287
  • Rotation:Right Hand
  • MPN: C1123A-R
26 inch Extreme Cam Brake Camshaft - Right Hand C1226B-R
SKU C1226B-R
$166.14

Brake Camshaft for multiple applications, trailer axle, 28 Spline, 26.938 inch length, 1-1/16 inch head, 2 inch spider diameter, 1.   Details

2 In Stock as of October 24, 2020 7:05 PM EST.
  • Axle Type:Trailer
  • Length:26.938 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:2 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-9738
  • Bushing Cross References:E-2287
  • Rotation:Right Hand
  • MPN: C1226B-R
11 inch Extreme Cam brake camshaft - Right Hand C1311A-R
SKU C1311A-R
$93.27

Brake Camshaft for multiple applications, trailer axle, Hendx INTRAAX, 28 Spline, 11.   Details

16 In Stock as of October 24, 2020 7:02 PM EST.
  • Axle Type:Trailer
  • Length:11.0313 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:2-1/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Application:Hendx INTRAAX
  • Cross References:E-11865, E-10900, E-11867
  • Bushing Cross References:E-11897
  • Rotation:Right Hand
  • MPN: C1311A-R
Extreme Cam Brake Camshaft | 22 inch | Right Hand C1122A-R
SKU C1122A-R
$150.99

For multiple applications, trailer axle, 28 Spline, 22-3/8 inch length, 1-1/16 inch head, 1-7/8 inch spider diameter, 1.   Details

Availability: Typically ships in 5 to 7 business days.
  • Axle Type:Trailer
  • Length:22-3/8 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:1-7/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-9090
  • Bushing Cross References:E-2089, E-2123, E-2088AHD, E-2287
  • Rotation:Right Hand
  • MPN: C1122A-R
26 inch Extreme Cam Brake Camshaft - Left Hand C1226B-L
SKU C1226B-L
$166.14

Brake Camshaft for multiple applications, trailer axle, 28 Spline, 26.938 inch length, 1-1/16 inch head, 2 inch spider diameter, 1.   Details

1 In Stock as of October 24, 2020 7:04 PM EST.
  • Axle Type:Trailer
  • Length:26.938 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:2 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-9737
  • Bushing Cross References:E-2287
  • Rotation:Left Hand
  • MPN: C1226B-L
Bushing Kit for Xtreme Cams C089
SKU C089
$14.57

For fabricated spiders which use bolt-on CAM bushings, you must order bolt-on option C-089.   Details

16 In Stock as of October 24, 2020 12:42 PM EST.
  • MPN: C-089
17 inch Extreme Cam brake camshaft - Left Hand C1117A-L
SKU C1117A-L
$124.36

Brake Camshaft for multiple applications, trailer axle, 28 Spline, 17.438 inch length, 1-1/16 inch head, 1-7/8 inch spider diameter, 1.   Details

1 In Stock as of October 24, 2020 7:03 PM EST.
  • Axle Type:Trailer
  • Length:17.4380 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:1-7/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-2795, E-5516, E-9725, E-9096, E-5522
  • Bushing Cross References:E-2089, E-2123, E-2088AHD, E-2287
  • Rotation:Left Hand
  • MPN: C1117A-L
17 inch Extreme Cam brake camshaft - Left Hand C1117A-L
SKU C1117A-R
$124.36

Brake Camshaft for multiple applications, trailer axle, 28 Spline, 17.438 inch length, 1-1/16 inch head, 1-7/8 inch spider diameter, 1.   Details

1 In Stock as of October 24, 2020 7:03 PM EST.
  • Axle Type:Trailer
  • Length:17.4380 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:1-7/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Cross References:E-2794, E-5517, E-9726, E-9097, E-5523
  • Bushing Cross References:E-2089, E-2123, E-2088AHD, E-2287
  • Rotation:Right Hand
  • MPN: C1117A-R
21 inch Extreme Cam Brake Camshaft and Bushing System - Left Hand
SKU C1121A-L
$143.79

For multiple applications, trailer axle, Q+ shoe, 28 Spline, 21.125 inch length, 1-1/16 inch head, 1-7/8 inch spider diameter, 1.   Details

3 In Stock as of October 24, 2020 7:03 PM EST.
  • Axle Type:Trailer
  • Length:21.125 inch
  • Head Size:1-1/16 inch
  • Spider Diameter:1-7/8 inch
  • Spline Teeth:28
  • Journal:1.5 inch Continuous
  • Application:Multiple, Q+
  • Cross References:E-685, E-2100
  • Bushing Cross References:E-2123, E-2287, E-2088AHD, E-2089, E-2090, E-2122
  • Rotation:Left Hand
  • MPN: C1121A-L

New Extreme Duty, Full Length, Replaceable, Cam Bushing System

Increase the Life of Your Camshaft Bushings

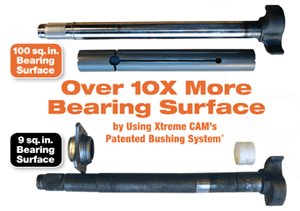

Xtreme Cams convert the entire length of your S-Cams into a long journal bearing. By distributing loads over a larger surface area, wear from vibration and torsional loads is greatly reduced. Xtreme Cam shafts utilize a machined surface over the entire length. The Xtreme Cam tube is sealed on both ends and includes both a grease zirc as well as a grease relief valve. When the tube is filled with grease, the entire S-Cam is converted into a sealed, greased journal bearing. This provides significantly more bearing surface than conventional split bushings which support the S-Cam on the ends only. Additional bearing surface reduces wear and extends the time between bushing replacement.

extreme cam camshaft

Improve Braking Performance

extreme cam with included parts

Worn S-Cam bushings cost money and impair brake performance. Symptoms of worn bushings include uneven or premature brake wear. Most symptoms of worn bushings have detrimental effect on brake performance: decreasing stopping power and causing linings to fail or wear prematurely. Xtreme Cams extend the life of the S-Cam bushings, maintaining proper brake performance, and saving you money.

Protects S-Cams from Damage

Xtreme Cam protects S-Cams from road damage and corrosion by using a sealed protective tube. Grease fittings and channels allow the tube to fill with grease without overcharging or hydrolocking. Xtreme Cam protects your cams from extreme road conditions.

Xtreme Cam brake camshaft
